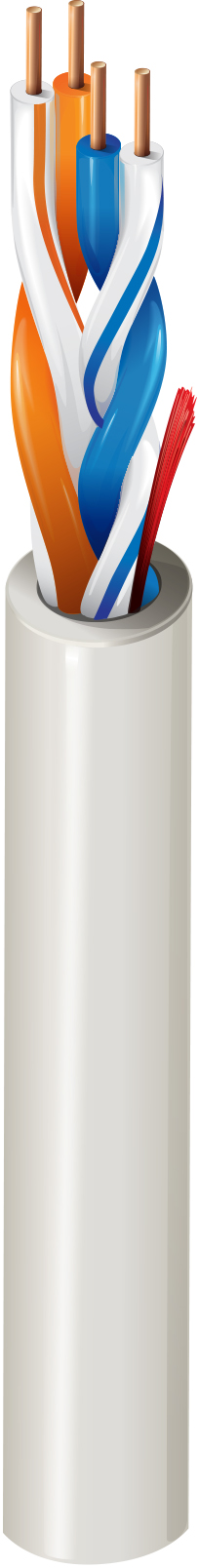

Category 3 Horizontal Cable, 2 Pair, U/UTP, CMR (Category 6A Cable) – Belden (1227A1)

Features & Benefits

• Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
• Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
• Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
• Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
• Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications	Ethernet 10BASE-T, Analog Phone, FAX

Construction Details

Conductor

Size	Stranding	Material	No. of Pairs
24 AWG	Solid	BC – Bare Copper	2

Insulation

Material	Color Code
PO – Polyolefin	White/Blue Stripe & Blue, White/Orange Stripe & Orange

Outer Jacket

Material	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.173 in (4.39 mm)	No

Overall Cable Diameter (Nominal)	0.173 in (4.39 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR	Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft)	90 pF/100m

Delay

Frequency	Max. Delay	Max. Delay Skew	Nom. Velocity of Prop.
16 MHz	543 ns/100m	45 ns/100m	70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)	Min. NEXT [dB]	Min. SRL (Structural Return Loss) [dB]	Max./Min. Fitted Impedance [Ohm]
1	2.6 dB/100m	41.0	12.0	100 ± 15
4	5.6 dB/100m	32.0	12.0	100 ± 15
8	8.5 dB/100m	27.0	12.0	100 ± 15
10	9.7 dB/100m	26.0	12.0	100 ± 15
16	13.1 dB/100m	23.0	10.0	100 ± 15

Voltage

UL Voltage Rating
300 V (CMR)

Mechanical Characteristics

Temperature

UL Temperature	Operating	Installation	Storage
75°C	-20°C To +75°C	0°C To +50°C	-20°C To +75°C

Bend Radius

Stationary Min.	Installation Min.
1.0 in (25 mm)	1.75 in (44.5 mm)

Max. Pull Tension	15 lbs (6.8 kg)
Bulk Cable Weight	12 lbs/1000ft

Standards and Compliance

Part Numbers

Environmental Suitability	Riser, Indoor, Outdoor, Sunlight Resistance
Sustainability	Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire	UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca

Item #	Color	Putup Type	Length	UPC
1227A1 008U1000	Gray	UnReel	1,000 ft	612825109266
1227A1 Q5HU1000	White	UnReel	1,000 ft	612825109259
