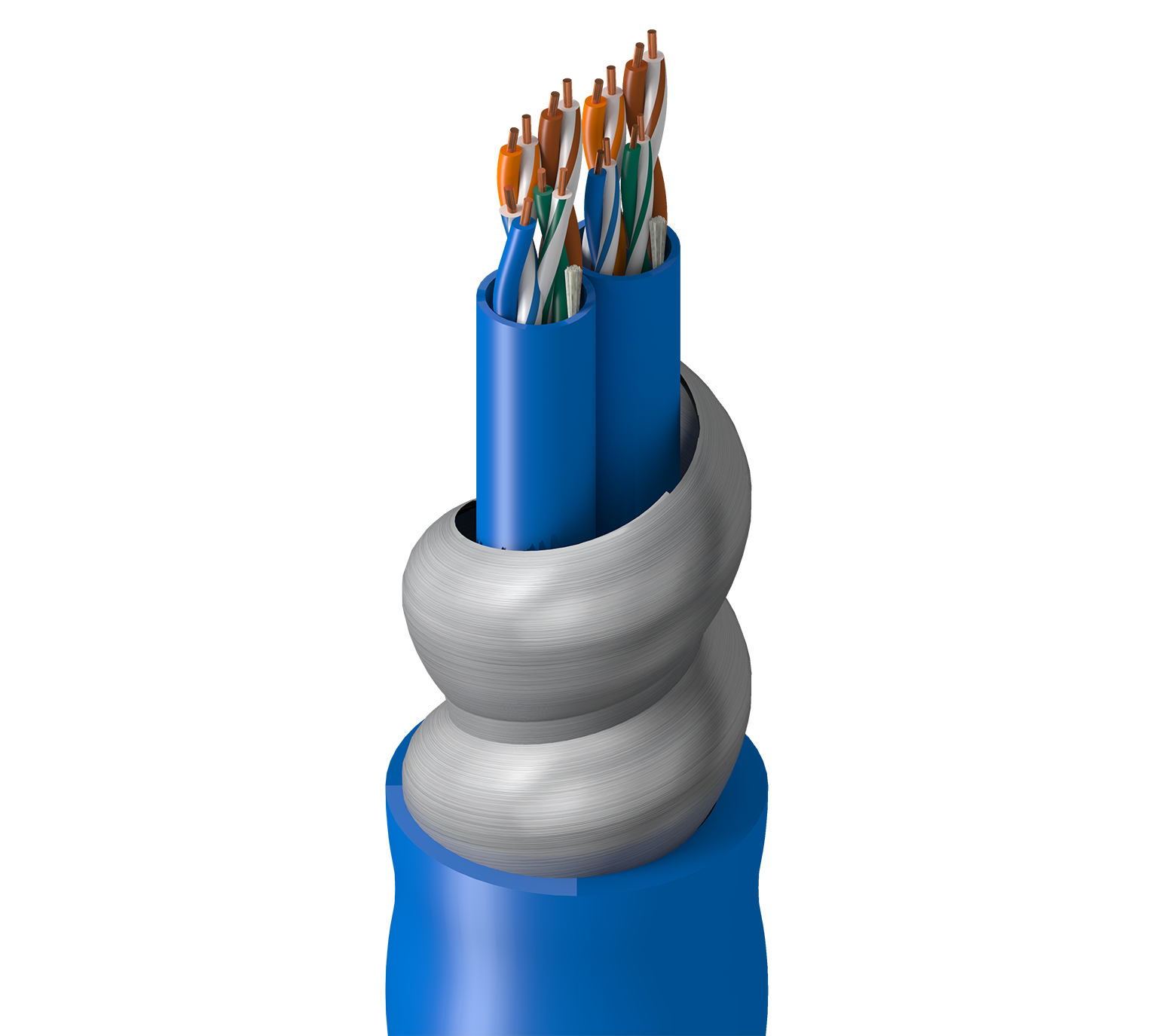

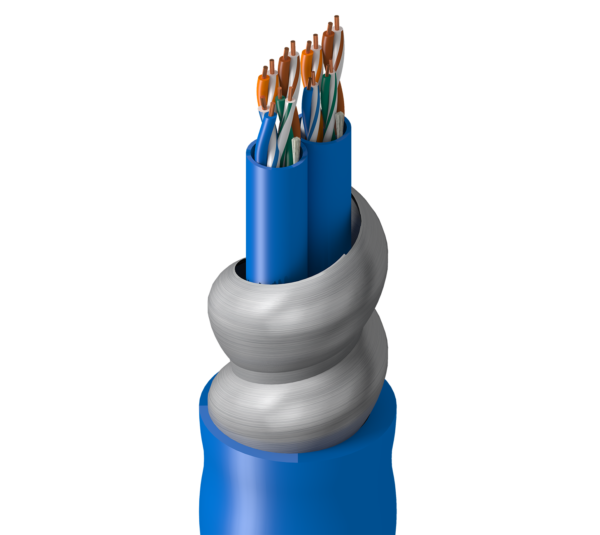

CAT5e+ Horizontal Bonded-Pair, 2x4pr, UTP, PVC Jkt, CMR, Siamese (Category 6A Cable) – Belden (121702A)

Features & Benefits

• Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
• Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
• Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
• Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
• Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications	harsh environment, IIoT, factory or process automation, IP cameras and devices, data communication, etc. exposure to rodent, crush, or cut through force,
Patent	This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size	Stranding	Material	No. of Pairs
24	Solid	BC – Bare Copper	8

Insulation

Material	Color Code
PO – Polyolefin	White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown

Bonded-Pair	Yes

Inner Jacket

Material	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.415 x 0.200 in	Yes

Armor

Armor Type & Material	Armor Thickness	Diameter Over Armor
AIA – Aluminum Interlock Armor	0.025 in (0.64 mm)	0.638 in (16.2 mm)

Outer Jacket

Separator	Material	Nom. Diameter
Polyester Tape	PVC – Polyvinyl Chloride	0.738 in (18.7 mm)

Overall Cable Diameter (Nominal)	0.738 in (18.7 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR
90 Ohm/km (27 Ohm/1000ft)

Delay

Nom. Velocity of Prop.
70%

High Frequency

Frequency [MHz]	Max. Insertion Loss (Attenuation)
1	2 dB/100m
4	4 dB/100m
8	5.7 dB/100m
10	6.4 dB/100m
16	8.1 dB/100m
20	9.2 dB/100m
25	10.3 dB/100m
31.25	11.6 dB/100m
62.5	16.8 dB/100m
100	21.7 dB/100m
155	27.7 dB/100m
200	32 dB/100m
250	36.4 dB/100m
300	40.5 dB/100m
310	41.3 dB/100m
350	44.3 dB/100m

Voltage

UL Voltage Rating
300 V (CMG)

Mechanical Characteristics

Temperature

UL Temperature	Operating	Storage
60°C	-40°C To +60°C	-40°C To +60°C

Bend Radius
