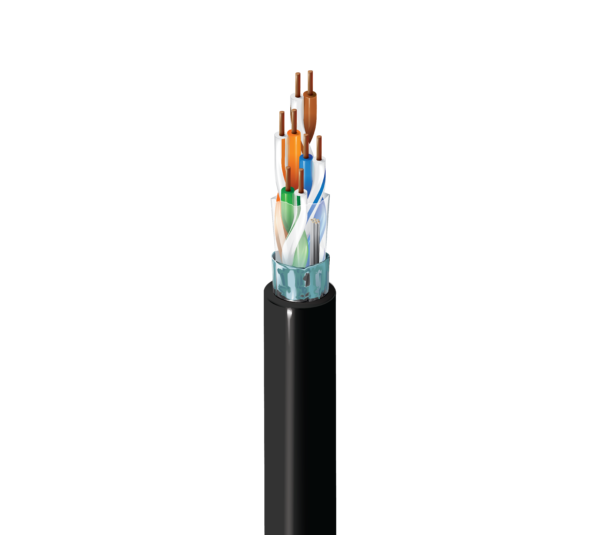

Category 5E+ Cable, 4 Pair, F/UTP, CMR (Category 6A Cable) – Belden (1212F)
Category 5E+ Premise Horizontal Cable (350MHz), 4 Pair, 24 AWG Solid Bare Copper Conductors, F/UTP – Foil Shielded, Riser-CMR, PVC Jacket
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while, Belden’s newest cable, 10GXW, is the industry’s smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.
Call for Price
Features & Benefits
- Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
- Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
- Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
- Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
- Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables
Specifications
Product Overview
|
Suitable Applications |
Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE , Noisy Environments |
|---|
Construction Details
Conductor
| Size | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 AWG | Solid | BC – Bare Copper | 4 |
Insulation
| Material | Color Code |
|---|---|
| PO – Polyolefin | White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Polyester + Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 0.260 in (6.60 mm) |
|
Overall Cable Diameter (Nominal) |
0.260 in (6.60 mm) |
|---|
Electrical Characteristics
Electricals
| Max. Conductor DCR | Max. Capacitance Unbalance |
|---|---|
| 93.8 Ohm/km (28.6 Ohm/1000ft) | 330 pF/100m |
Delay
| Frequency | Max. Delay | Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|---|---|
| 100 MHz | 537.6 ns/100m | 45 ns/100m | 70% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Max./Min. Input Impedance (unFitted) [Ohm] | Max./Min. Fitted Impedance [Ohm] | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 2.0 dB/100m | 70.3 | 68.3 | 70.3 | 66.3 | 67.8 | 64.8 | 20.0 | 100 ± 15 | 100 ± 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4 | 4.0 dB/100m | 61.3 | 59.3 | 59.3 | 55.3 | 55.8 | 52.8 | 23.0 | 100 ± 15 | 100 ± 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 8 | 5.7 dB/100m | 56.8 | 54.8 | 53.1 | 49.1 | 49.7 | 46.7 | 24.5 | 100 ± 15 | 100 ± 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 10 | 6.4 dB/100m | 55.3 | 53.3 | 50.9 | 46.9 | 47.8 | 44.8 | 25.0 | 100 ± 15 | 100 ± 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 16 | 8.1 dB/100m | 52.2 | 50.2 | 46.1 | 42.1 | 43.7 | 40.7 | 25.0 | 100 ± 15 | 100 ± 15 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 20 | 9.1 dB/100m | 50.8 | 48.8 | 43.7 | 39.7 | 41.8 | 38.8 | 25.0 | 100 ± 15 | 100 ± 15 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1212F 0101000 | Black | Reel | 1,000 ft | 612825108658 | |
| 1212F 010A1000 | Black | Reel-in-Box | 1,000 ft | 612825108641 | |
| 1212F 006A500 | Blue | Reel-in-Box | 500 ft | 612825108573 | C |
| 1212F 0061000 | Blue | Reel | 1,000 ft | 612825108580 | |
| 1212F 006A1000 | Blue | Reel-in-Box | 1,000 ft | 612825108566 | |
| 1212F 0081000 | Gray | Reel | 1,000 ft | 612825108603 | |
| 1212F 008A1000 | Gray | Reel-in-Box | 1,000 ft | 612825108597 | |
| 1212F 0051000 | Green | Reel | 1,000 ft | 612825108559 | |
| 1212F 005A1000 | Green | Reel-in-Box | 1,000 ft | 612825108542 | |
| 1212F 0031000 | Orange | Reel | 1,000 ft | 612825108511 | |
| 1212F 003A1000 | Orange | Reel-in-Box | 1,000 ft | 612825108504 | |
| 1212F 0021000 | Red | Reel | 1,000 ft | 612825108498 | |
| 1212F 002A1000 | Red | Reel-in-Box | 1,000 ft | 612825108481 | |
| 1212F 009A500 | White | Reel-in-Box | 500 ft | 612825108627 | C |
| 1212F 0091000 | White | Reel | 1,000 ft | 612825108634 | |
| 1212F 009A1000 | White | Reel-in-Box | 1,000 ft | 612825108610 | |
| 1212F 0041000 | Yellow | Reel | 1,000 ft | 612825108535 | |
| 1212F 004A1000 | Yellow | Reel-in-Box | 1,000 ft | 612825108528 |
