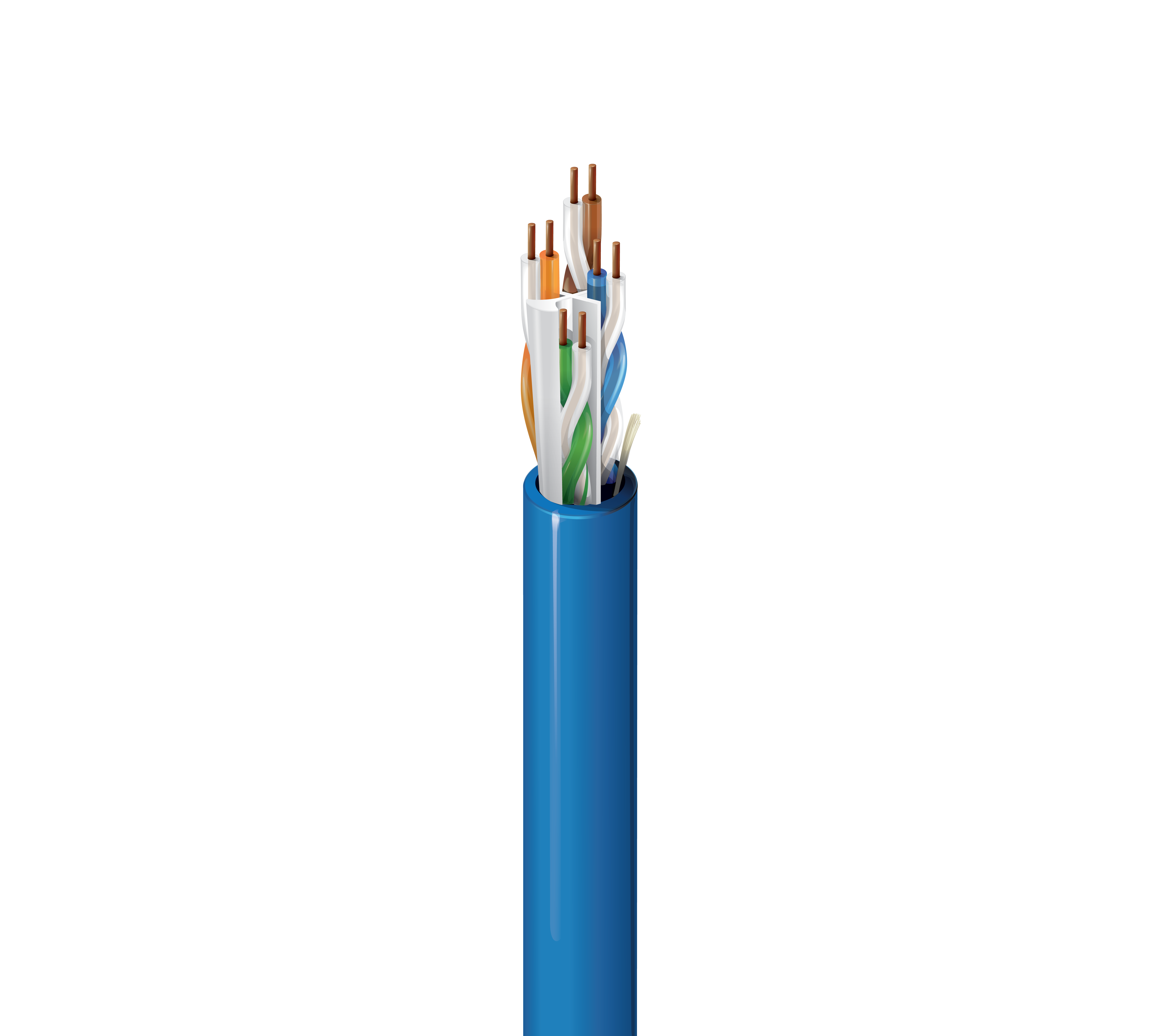

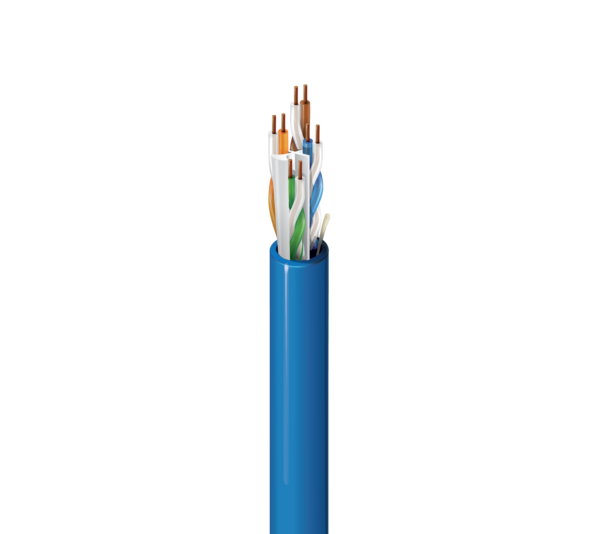

10GXS Category 6A Enhanced Cable, 4 Bonded-Pairs, U/UTP, CMR (Category 6A Cable) – Belden (10GXS32)

Call for Price

10GXS Category 6A Enhanced Premise Horizontal Cable (625MHz), 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR, PVC Jacket
Our Category 6A Copper Cable offers a wide range of options for your CAT 6A network. Some options that are available include small diameter, snake, industrial, non-bonded, and patented Bonded-Pair. The 10GXS Cable is the industry’s gold standard for performance, while, Belden’s newest cable, 10GXW, is the industry’s smallest-diameter Category 6A cable designed for smart building and multi-gigabit applications with performance optimized for in-building wireless networks.

Compare
SKU: BELDEN-10GXS32 Categories: , , ,
Belden

Description

Features & Benefits

  • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
  • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
  • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
  • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables

Specifications

Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, PoE++, PoE+, PoE, Noisy Environments, Data Center EoR and MoR, Network Backbone, HDBaseT, HDBaseT 4K UHD

Patent

This product has one or more applicable patents. More information on patents can be found at https://www.belden.com/patents.

Construction Details

Conductor

Size Stranding Material No. of Pairs
23 AWG Solid BC – Bare Copper 4

Insulation

Material Color Code
PO – Polyolefin White & Blue, White & Orange, White & Green, White & Brown

Bonded-Pair

Yes

Outer Jacket

Separator Material Nom. Diameter Ripcord
Center Member (Patented EquiSpline®), EquiBlock™ Barrier Technology PVC – Polyvinyl Chloride 0.278 in (7.06 mm) Yes

Overall Cable Diameter (Nominal)

0.278 in (7.06 mm)

Electrical Characteristics

Electricals

Max. Conductor DCR Max. Capacitance Unbalance
79 Ohm/km (24 Ohm/1000ft) 90 pF/100m

Delay

Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 537.6 ns/100m 45 ns/100m 65%
High Frequency

Part Numbers

Frequency [MHz] Max. Insertion Loss (Attenuation) Min. PSNEXT [dB] Min. PSACR [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm] Min. PSANEXT [dB] Min. PSAACRF [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 2.1 dB/100m 75.3 73.2 79.8 20.0 100 ± 15 105 ± 10 75.0 77.0 40.0 43.0
4 3.8 dB/100m 66.3 62.5 67.8 23.0 100 ± 15 100 ± 15 75.0 76.2 40.0 41.0
8 5.3 dB/100m 61.8 56.5 61.7 24.5 100 ± 15 100 ± 15 75.0 70.1 40.0 24.9
10 5.9 dB/100m 60.3 54.4 59.8 25.0 100 ± 15 100 ± 15 75.0 68.2 40.0 23.0
16 7.4 dB/100m 57.2 49.8 55.7 25.0 100 ± 15 100 ± 15 75.0 64.1 38.0 18.9
20 8.3 dB/100m 55.8 47.4
Item # Color UPC
10GXS32 0101000 Black 612825101949
10GXS32010A1000 Black 612825102038
10GXS32 0061000 Blue 612825101901
10GXS32006A1000 Blue 612825101994
10GXS32 0081000 Gray 612825101925
10GXS32008A1000 Gray 612825102014
10GXS32 0051000 Green 612825101895
10GXS32005A1000 Green 612825101987
10GXS32 0031000 Orange 612825101871
10GXS32003A1000 Orange 612825101963
10GXS32 0021000 Red 612825101864
10GXS32002A1000 Red 612825101956
10GXS32 0071000 Violet 612825101918
10GXS32007A1000 Violet 612825102007
10GXS32 0091000 White 612825101932
10GXS32009A1000 White 612825102021
10GXS32 0041000 Yellow 612825101888
10GXS32004A1000 Yellow 612825101970
Show All Parts Number

Brand

Belden
