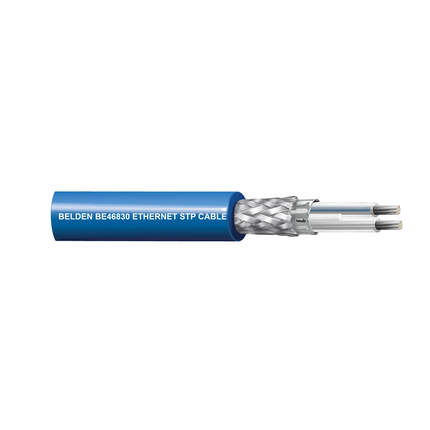

Product Overview
| Suitable Applications: |
1 single pair Ethernet up to 600 MHz |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 22 |
7×0.25 mm |
TC – Tinned Copper |
1 |
| Type |
Material |
Nominal Diameter |
| Insulation |
XLP, XLPO, XLPE |
2.10 mm |
| Color |
| Nature |
| Nature & Blue |
| Type |
Material |
Min. Coverage [%] |
| Tape |
Bi-Laminate (Alum+Poly) |
|
| Braid |
Tinned Copper (TC) |
80% |
| Material |
Nominal Diameter |
| LSZH – Low Smoke Zero Halogen (SHF1) |
6.20 mm |
Construction and Dimensions
| Min Elongation at Breakof Insulation: |
200 % |
| Min Elongation at Breakof InsulAged: |
25 % |
| Min Tensile Strength of Insulation Aged: |
25% |
| Min Tensile Strength at Breakof Insul: |
12.5 MPa |
| Min Elongation at Breakof Jacket: |
120 % |
| Min Tensile Strength of Jacket: |
9.0 MPa |
| Min Tensile Strength of Jacket Aged: |
30 % |
| Min Elongation at Break of Jacket Aged: |
30 % |
Electrical Characteristics
| Max. Conductor DCR |
Max. DCR Unbalanced Within Pair [%] |
| 59.4 Ohm/km |
2 % |
| Max. Capacitance Unbalance |
| 160 pF/100m |
| Dielectric Strength: |
0.7 kVac/1 min |
| Insulation Resistance: |
5000 MOhm*km |
| Insulation Resistance (Cond to Cond): |
5000 MOhm*km |
| Insulation Resistance (Cond to Screen): |
5000 MOhm*km |
| Nominal Characteristic Impedance |
| 100 Ohm |
| Frequency [MHz] |
Max. Delay |
| 4 MHz |
552 ns/100m |
| Frequency [MHz] |
Max. Insertion Loss (Attenuation) |
Min. RL (Return Loss) [dB] |
Min. TCL [dB] |
Min. ELTCTL [dB] |
| 1 MHz |
3.0 dB/100m |
20 dB |
40 dB |
40 dB |
| 10 MHz |
8.7 dB/100m |
25 dB |
35 dB |
20 dB |
| 20 MHz |
12.3 dB/100m |
25 dB |
30.5 dB |
13.9 dB |
| 600 MHz |
70.6 dB/100m |
15.6 dB |
8.3 dB |
5 dB |
| Coupling Attenuation Class: |
Type I |
| Transfer Impedance Class: |
Grade 1 |
Temperature Range
| Operating Temperature Range: |
-20°C to + 80°C |
Mechanical Characteristics
| Impact Resistance Test: |
Test on jacket at (-35 ± 2)°C/16h: No cracks |
| Bending Test: |
Test on jacket at -(40±2)°C/16h : No cracks |
| Pressure Test for Jacket: |
at 80°C x 4h (IEC 60811-3-1): ? 50% |
| Flexibility Test: |
Test on jacket at (121±2)°C x 168h (UL 758): No cracks |
| Deformation Test for Insulation: |
At 121°Cx1hx250gf (UL 758) : ? 50% |
| Deformation Test for Jacket: |
At 100°Cx1hx2kgf (UL 758) : ? 50% |
| Max Dielectric Shrinkage: |
5 % |
| Dielectric Shrinkage Description: |
Shrinkage of Insulation (IEC60811-1-3) |
| Heat Stroke Test: |
No cracks |
| Heat Stroke Test Description: |
Test on jacket at 150°Cx1h (IEC 60811-3-1) |
| Low Temperature Test: |
No cracks |
| Low Temperature Test Description: |
Test for Insulation and Jacket at -20°Cx4hxØ6mm (IEC60811-1-4) |
| Compatibility Test for Insulation: |
at (100±2)°C for 168hrs: ±25% |
| Compatibility Test for Jacket: |
at (100±2)°C for 168hrs: ±30% |
| IRM 902 Mineral Oil Resistance Test: |
At 70C° x 4hr-
Tensile Strength(for Jacket): ? 60% of Original
Elongation at break(for Jacket):? 60% of Original |
| UV Resistance 720h per UL1581: |
Tensile Strength (Mpa) – 85% of original, Elongation at break (%) – 85% of original |
Standards
| UL AWM Style Compliance: |
AWM 21307 |
| Data Category: |
SPE 1000 Mbps |
| Other Standards: |
IEC 61156-12 NP, UL 758, IEC 60092-376 |
Applicable Environmental and Other Programs
| EU Directive 2002/95/EC (RoHS): |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2, IEC 60332-3-22 |
| Fluorine Content Test IEC60684-2: |
? 0.1 % |
| IEC 60754-1 – Halogen Amount: |
0.5 % |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
10 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
70% |
History
| Update and Revision: |
Revision Number: 0.77 Revision Date: 03-01-2024 |
