| Suitable Applications: | Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound |

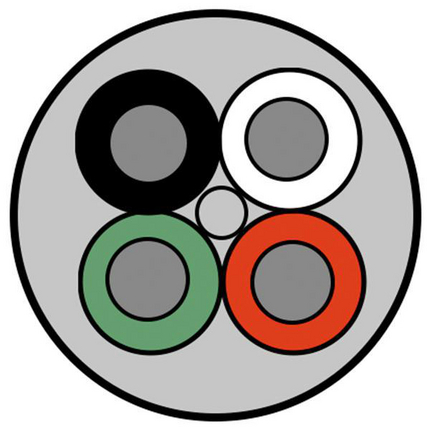

| Size | Stranding | Material |
|---|---|---|
| 4 mm² | Stranded | BC – Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PVC – Polyvinyl Chloride | 3.50 mm (0.138 in) | Black, Red, White, Green |
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 11.00 mm (0.4331 in) |
| Table Notes: | Flexible Matte Finish Sheath |
| Overall Cable Diameter (Nominal): | 11.00 mm (0.4331 in) |
| Max. Conductor DCR |
|---|
| 4.5 Ohm/km (1.4 Ohm/1000ft) |
| Operating | Storage |
|---|---|
| -15°C To +60°C | -15°C To +60°C |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2) |
| UK Regulation Compliance: | UKCA Mark |
| Update and Revision: | Revision Number: 0.164 Revision Date: 01-20-2023 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| BE46383.00305 | Black | Reel | 305 m | 8719605027603 |
