BE46380 - Speaker Cable PVC 2x4.0mm², CPR Eca.

BE46380 – Speaker Cable PVC 2×4.0mm², CPR Eca.

Call for Price

Compare
SKU: BE46380 Categories: , , ,

Description

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Construction n x D
Stranded BC – Bare Copper 4.00 mm² 56×0.30 mm
Conductor Count: 2
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PVC – Polyvinyl Chloride 3.50 mm 0.07 mm
Color Chart
Number Color
Wire 1 Black
Wire 2 Red
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
PVC – Polyvinyl Chloride 9.00 mm 0.10 mm
Table Notes: Flexible Matte Finish Sheath

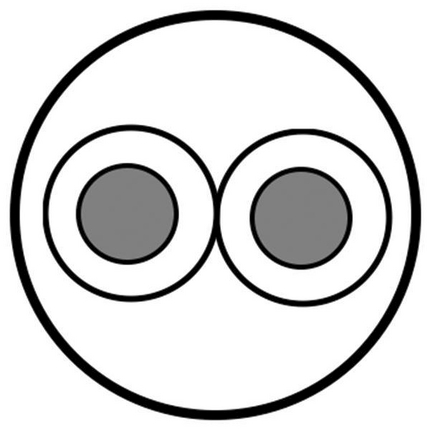

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
4.5 Ohm/km
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE46380.01100 Black Reel 100 m 8719605027467
BE46380.00500 Gray Reel 500 m 8719605027450

History

Update and Revision: Revision Number: 0.154 Revision Date: 02-15-2024
