Product Overview
| Suitable Applications: |
Microphone Cable |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 24 |
Stranded |
BC – Bare Copper |
32×0.10 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.45 mm |
0.05 mm |
| Number |
Color |
| Wire 1 |
Red |
| Wire 2 |
Blue |
| Type |
Material |
Min. Coverage [%] |
| Spiral Serve / Screen |
Bare Copper (BC) |
90% |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
6.10 mm |
0.20 mm |
| Table Notes: |
Flexible Matte Finish Sheath |

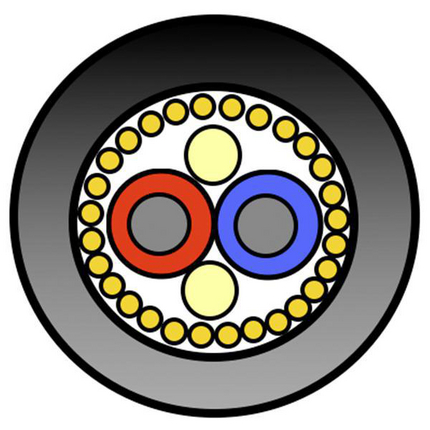

Construction and Dimensions
| Description |
Filler |
| 2 fillers + 2 wires twisted |
Cotton yarn (2x) |
Electrical Characteristics
| Max. Conductor DCR |
| 78 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Shield |
| 60 pF/m |
110 pF/m |
Temperature Range
| Storage Temperature Range: |
-15°C To +60°C |
| Other Temp Range: |
-5 to +60 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
61 mm |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| BE46349.10100 |
Black |
Reel |
100 m |
8719605027344 |
| BE46349.00500 |
Black |
Reel |
500 m |
8719605027337 |
| BE46349.001000 |
Black |
Reel |
1,000 m |
8719605027313 |
| BE46349.13100 |
Blue |
Reel |
100 m |
8719605027375 |
| BE46349.11100 |
Green |
Reel |
100 m |
8719605027351 |
| BE46349.12100 |
Red |
Reel |
100 m |
8719605027368 |
History
| Update and Revision: |
Revision Number: 0.165 Revision Date: 02-15-2024 |
