Product Overview
| Suitable Applications: |
The Belden 46-analog-series is a flexible audio snake cable with an overall braid shield; This makes the cable suitable for mobile applications; Jacketed pairs are individually numbered for easy identification |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Cross Section |
Construction n x D |
| 26 |
18×38 |
TC – Tinned Copper |
0.14 mm² |
18×0.10 mm |
| Total Number of Pairs: |
28 |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.05 mm |
0.05 mm |
| Number |
Color |
| Pair 1 t/m 28 |
Red & White |
| Type |
Material |
Min. Coverage [%] |
| Tape |
Polyester |
|
| Spiral Serve / Screen |
Tinned Copper (TC) |
90% |
| Material |
Color |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
Gray (like RAL 7001) |
3.05 mm |
0.10 mm |
| Table Notes: |
Elements numbered 1 – 28 |
| Type |
Material |
Min. Coverage [%] |
| Braid |
Tinned Copper (TC) |
80% |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
23.40 mm |
0.60 mm |
| Table Notes: |
Flexible Matte Finish Sheath |

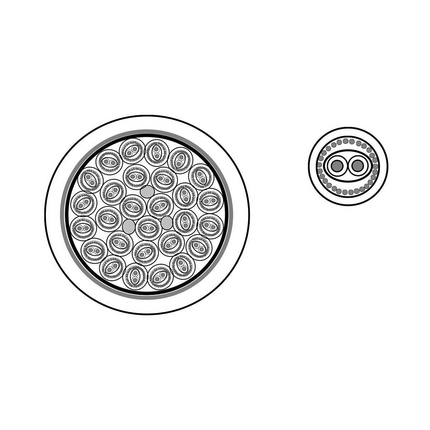

Construction and Dimensions
| Description |
Filler |
| 3 fillers + 28 pairs covered with a non-woven separating foil |
Yarn (3x) |
Electrical Characteristics
| Max. Conductor DCR |
| 260 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
| 70 pF/m |
| Nominal Characteristic Impedance |
Nominal Characteristic Tolerance |
| 90 Ohm |
+/- 20 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
| 66% |
Temperature Range
| Installation Temperature Range: |
-5°C To +70°C |
| Storage Temperature Range: |
-30°C To +70°C |
| Other Temp Range: |
-30 to +70 °C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
234 mm |
| Min. Bend Radius During Operation: |
351 mm |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| BE46332.01250 |
Black |
Reel |
250 m |
8719605027276 |
History
| Update and Revision: |
Revision Number: 0.229 Revision Date: 01-15-2024 |
