BE46305 – AUDIO ANALOG 16 PAIR, 26AWG, ISTP, PVC, STAGE

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

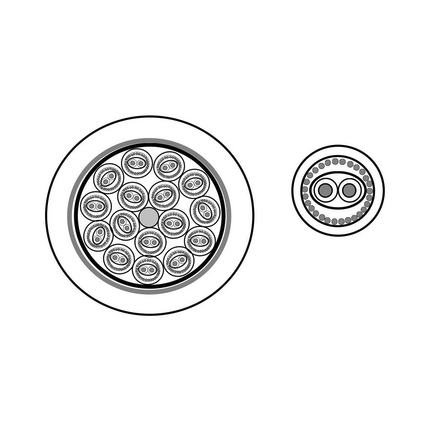

Suitable Applications: The Belden 46-analog-series is a flexible audio snake cable with an overall braid shield; This makes the cable suitable for mobile applications; Jacketed pairs are individually numbered for easy identification

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Cross Section Construction n x D
26 18×38 TC – Tinned Copper 0.14 mm² 18×0.10 mm
Conductor Count: 32
Total Number of Pairs: 16
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene 1.05 mm 0.05 mm
Color Chart
Number Color
Pair 1 t/m 16 Red & White
Inner Shield
Type Material Min. Coverage [%]
Tape Polyester
Spiral Serve / Screen Tinned Copper (TC) 90%
Inner Jacket
Material Color Nominal Diameter Diameter +/- Tolerance
PVC – Polyvinyl Chloride Gray (like RAL 7001) 3.05 mm 0.10 mm
Table Notes: Elements numbered 1 – 16
Outer Shield
Type Material Min. Coverage [%]
Braid Tinned Copper (TC) 80%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
PVC – Polyvinyl Chloride 18.00 mm 0.50 mm
Table Notes: Flexible Matte Finish Sheath

Construction and Dimensions

Cabling
Description Filler
1 center filler + 16 pairs covered with a non-woven separating foil Filler (2.9 mm)

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
260 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
70 pF/m
Impedance
Nominal Characteristic Impedance Nominal Characteristic Tolerance
90 Ohm +/- 20 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%

Temperature Range

Installation Temperature Range: -5°C To +70°C
Storage Temperature Range: -30°C To +70°C
Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation: 180 mm
Min. Bend Radius During Operation: 270 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE46305.00250 Black Reel 250 m 8719605027146
BE46305.00500 Black Reel 500 m 8719605027153
