BE46207 – 16 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Cross Section Construction n x D
26 7×34 TC – Tinned Copper 0.14 mm² 7×0.16 mm
Conductor Count: 32
Total Number of Pairs: 16
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene (Foam) 1.1 mm 0.03 mm
Color Chart
Number Color
Pair 1 t/m 16 White & Blue
Inner Shield
Type Material Nominal Diameter Min. Coverage [%]
Spiral Serve / Screen Tinned Copper (TC) 2.40 mm 90%
Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
Nylon 2.8 mm 0.1 mm
Outer Shield
Type Material Nominal Diameter Min. Coverage [%]
Braid Tinned Copper (TC) 13.1 mm 90%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 15.3 mm 0.5 mm

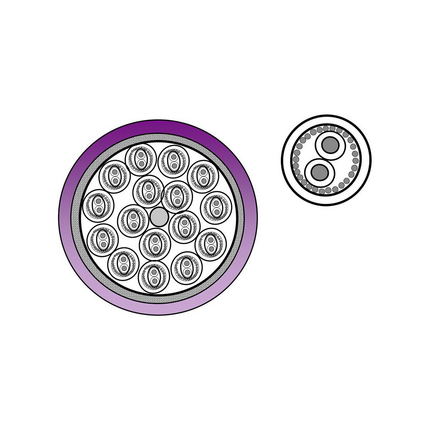

Construction and Dimensions

Cabling
Description
1 center filler + 16 pairs covered with a non-woven separating foil

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
130 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 – 6 110 Ohm +/- 15 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 2.3 dB/100m
6 MHz 9.5 dB/100m
10 MHz 16 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
60%

Temperature Range

Other Temp Range: -25 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation: 153 mm
Min. Bend Radius During Operation: 229.5 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE46207.00250 Purple Reel 250 m 8719605026835
BE46207.00500 Purple Reel 500 m 8719605026842

History

Update and Revision: Revision Number: 0.161 Revision Date: 01-15-2024
