BE46204 - 4 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE

BE46204 – 4 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE

Call for Price

Compare
SKU: BE46204 Categories: , , , ,

Description

Product Overview

Suitable Applications: Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Cross Section Construction n x D
26 7×34 TC – Tinned Copper 0.14 mm² 7×0.16 mm
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene (Foam) 1.1 mm 0.03 mm
Color Chart
Number Color
Pair 1 t/m 4 White & Blue
Inner Shield
Type Material Nominal Diameter Min. Coverage [%]
Spiral Serve / Screen Tinned Copper (TC) 2.40 mm 90%
Inner Jacket
Material Nominal Diameter Diameter +/- Tolerance
Nylon 2.8 mm 0.1 mm
Outer Shield
Type Material Nominal Diameter Min. Coverage [%]
Braid Tinned Copper (TC) 7 mm 90%
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH – Low Smoke Zero Halogen (Flame Retardant) 9 mm 0.4 mm

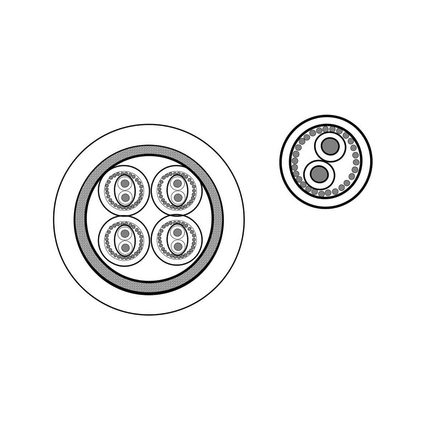

Construction and Dimensions

Cabling
Description
4 pairs covered with a non-woven separating foil

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
130 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
50 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 – 6 110 Ohm +/- 15 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 2.3 dB/100m
6 MHz 9.5 dB/100m
10 MHz 16 dB/100m
Delay
Nominal Velocity of Propagation (VP) [%]
60%

Temperature Range

Other Temp Range: -25 to +70 °C

Mechanical Characteristics

Min. Bend Radius During Installation: 90 mm
Min. Bend Radius During Operation: 135 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE46204.01500 Black Reel 500 m 8719605171894

History

Update and Revision: Revision Number: 0.161 Revision Date: 01-15-2024
