Product Overview
| Suitable Applications: |
DMX 512 lighting control applications |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Construction n x D |
| 22 |
7×30 |
TC – Tinned Copper |
7×0.25 mm |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
| Insulation |
PE – Polyethylene |
1.35 mm |
0.10 mm |
| Number |
Color |
| Pair 1 |
White & Red |
| Pair 2 |
Green & Black |
| Type |
Material |
Coverage [%] |
Thickness of Foil |
Drainwire Material |
Drainwire AWG |
Drainwire Construction n x D |
Drainwire Position |
| Braid |
Tinned Copper (TC) |
80% |
|
TC – Tinned Copper |
24 |
7×0.20 mm |
Over foil, under braid |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
9/23 µm |
|
|
|
|
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PVC – Polyvinyl Chloride |
6.80 mm |
0.25 mm |
| Table Notes: |
Flexible Matte Finish Sheath |

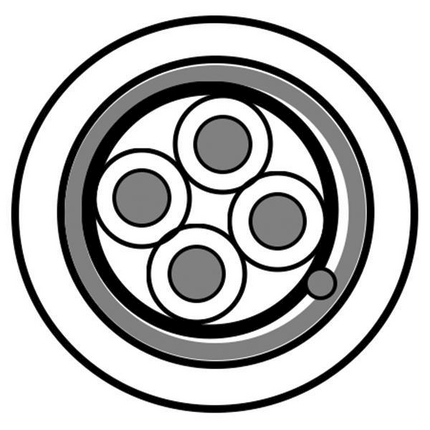

Construction and Dimensions
| Description |
| 2 pairs twisted |
Electrical Characteristics
| Max. Conductor DCR |
Max. Outer Shield DCR |
| 58 Ohm/km |
15 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 70 pF/m |
112 pF/m |
| Nominal Inductance |
| 0.68 µH/m |
Temperature Range
| Storage Temperature Range: |
-25°C To +70°C |
| Other Temp Range: |
-5 to +70 °C |
Mechanical Characteristics
| Bulk Cable Weight: |
61 kg/km |
Standards
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| BE43906.00250 |
Black |
Reel |
250 m |
8719605026606 |
| BE43906.00500 |
Black |
Reel |
500 m |
8719605026613 |
| BE43906.001000 |
Black |
Reel |
1,000 m |
8719605026590 |
History
| Update and Revision: |
Revision Number: 0.181 Revision Date: 12-22-2023 |
