| Suitable Applications: | For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2, ECE R118.03 |
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 24 AWG | 19×36 | TC – Tinned Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PO – Polyolefin (Foam) | 1.45 mm (0.0571 in) | White & Blue, White & Orange, White & Green, White & Brown | eBeam Cross-Linked |
| Table Notes: | Insulation OD tolerance +/- 0.05mm |
| Description |
|---|

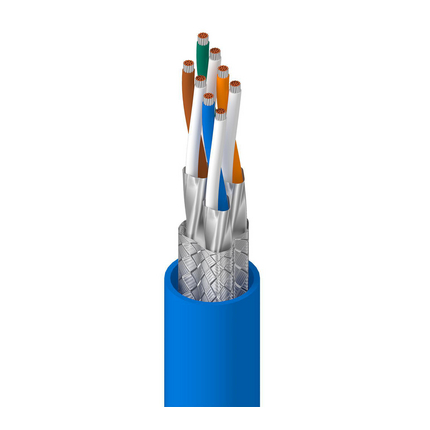

| 4 pairs twisted together |
| Element | Shield Type | Material |
|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) |
| Table Notes: | Aluminium facing outside |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 80% |
| Material | Nom. Diameter |
|---|---|
| LSZH – Low Smoke Zero Halogen (Flame Retardant, Thermoset) | 8.1 mm (0.32 in) |
| Table Notes: | e-Beamed to Cross-link, cable meets smoke test of LU 1-085. Jacket OD +/- 0.3mm |
| Overall Cable Diameter (Nominal): | 8.1 mm (0.32 in) |
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 95 Ohm/km | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 25 ns/100m | 78% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) |
|---|---|
| 1 | 2.9 dB/100m |
| 4 | 5.6 dB/100m |
| 10 | 8.8 dB/100m |
| 16 | 11.1 dB/100m |
| 31.2 | 15.6 dB/100m |
| 62.5 | 22.3 dB/100m |
| 100 | 28.5 dB/100m |
| 300 | 51.3 dB/100m |
| 600 | 75.1 dB/100m |
| 1000 | 100.4 dB/100m |
| Table Notes: | Limits below 4MHz are for information only. Values at 1000 MHz are for information only |
| Transfer Impedance Class: | Grade 1 |
| Table Notes: | IEC 61156-5 |
| Screening Class: | Type I |
| Table Notes: | Coupling attenuation |
| Voltage Rating |
|---|
| 300 V |
| Operating | Installation | Storage |
|---|---|---|
| -40°C to +90°C | -25°C To +50°C | -40°C to +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 32 mm (1.3 in) | 64 mm |
| Environmental Suitability: | Indoor, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-2-25, UN ECE R118.03 |
| Data Category: | Category 7 |
| ISO/IEC Compliance: | ISO/IEC 11801-1 |
| CENELEC Compliance: | EN 45545-2, Segregation class according EN50174-2 = d |
| European Halogen Free Standards: | IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 10 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3 |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.230 Revision Date: 03-18-2024 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| BE43802.00500 | Blue | Reel | 500 m | 8719605026576 |
