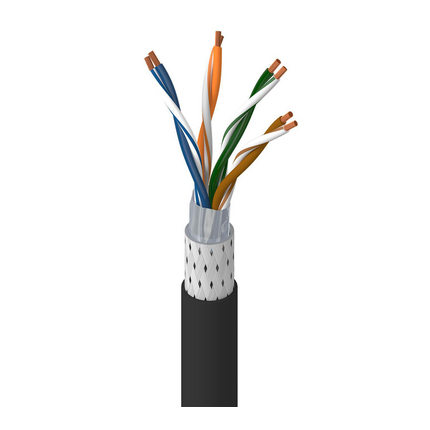

BE43800 - Railtuff ® 5E, 4PR #26 Str BC, PO ins, SF/UTP, LSNH Jkt, EN 45545-2

BE43800 – Railtuff ® 5E, 4PR #26 Str BC, PO ins, SF/UTP, LSNH Jkt, EN 45545-2

Call for Price

Compare
SKU: BE43800 Categories: , , ,

Description

Product Overview

Suitable Applications: For use in railway applications such as rolling stock, buses or other vehicles, cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2

Construction Details

Conductor
Size Stranding Material No. of Pairs No. of Elements
26 AWG 19×0.10 mm BC – Bare Copper 4 8
Insulation
Material Nom. Insulation Diameter Color Code
PO – Polyolefin 1 mm (0.039 in) White/Blue & Blue, White/Orange & Orange, White/Green & Green, White/Brown & Brown
Cable Core
Description
4 pairs twisted to cable core
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly)
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant, Thermoset) 6.7 mm (0.26 in)
Table Notes: e-Beamed to Cross-link, Jacket OD +/- 0.3mm
Overall Cable Diameter (Nominal): 6.7 mm (0.26 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
145 Ohm/km 56 pF/m (17 pF/ft) 160 pF/100m 100 Ohm
Delay
Max. Delay Skew Nom. Velocity of Prop.
40 ns/100m 60%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Min. TCL [dB] Min. ELTCTL [dB]
1 3.1 dB/100m 65.3 62.3 62.1 59.1 64 61 20 40 35
4 6 dB/100m 56.3 53.3 50.3 47.3 52 49 23 34 23
10 9.5 dB/100m 50.3 47.3 40.8 37.8 44 41 25 30 15
16 12.1 dB/100m 47.2 44.2 35.2 32.2 39.9 36.9 25 28 10.9
20 13.5 dB/100m 45.8 42.8 32.2 29.2 38 35 25 27 9
31.25 17.1 dB/100m 42.9 39.9 25.8 22.8 34.1 31.5 23.6 25.1 5.5
62.5 24.8 dB/100m 38.4 35.4 13.6 10.6 28.1 25.1 21.5 22
100 32 dB/100m 35.3 32.3 3.3 0.3 24 21 20.1 20
Table Notes: According ISO/IEC 11801 Cat. 5e and ISO/IEC 61156-5
Transfer Impedance
Frequency Max. Transfer Impedance
1 Mhz Max. 10 mOhm/m
10 Mhz Max. 10 mOhm/m
30 Mhz Max. 30 mOhm/m
100 Mhz 100 mOhm/m
Transfer Impedance Class: Grade 1
Screening Class: Type I
Table Notes: Coupling Attenuation
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating Installation Storage
-40°C to +90°C -25°C To +50°C -40°C to +90°C
Bend Radius
Stationary Min. Installation Min.
33.5 mm (1.32 in) 67 mm

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: IEC 60332-1-2, IEC 60332-2-25, EN 50305 (9.1.1), DIN 5510-2 protection level 1 to 4
Data Category: Category 5e
ISO/IEC Compliance: IEC 61034-2 – Smoke Density Min Transmittance = 70%
CENELEC Compliance: EN 45545-2, Segregation class according EN50174-2 = d
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU CE Mark

History

Update and Revision: Revision Number: 0.367 Revision Date: 03-18-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
BE43800.00100 Black Reel 100 m 8719605206381
BE43800.00305 Black Reel 305 m 8719605026552
BE43800.00500 Black Reel 500 m 8719605026569
BE43800.001000 Black Reel 1,000 m 8719605026545
