BE43780 – Lead Wire, #8 Str TC, PVC Ins, AWM 1034

Call for Price

Compare
SKU: BE43780 Categories: , , ,

Description

Product Overview

Suitable Applications: Rated temperature UL max 80 C and CSA max 105 C; Rated voltage max 600 V ac, 750 V dc and 2500 Volts peak for electronic use only; Interal Wiring of Applicances; or Internal Wiring of Appliances where exposed to oil at a temperature not exceeding 60 C

Physical Characteristics (Overall)

Conductor
AWG Stranding Material
8 168×30 TC – Tinned Copper
Conductor Count: 1

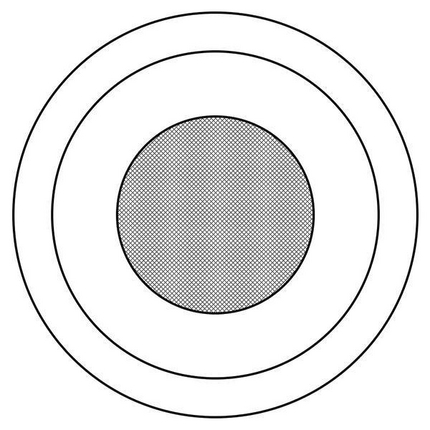

Insulation
Layer Type Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness Color
1 Insulation PVC – Polyvinyl Chloride 6.8 mm 0.05 mm
2 PVC – Polyvinyl Chloride 8 mm 0.12 mm 0.6 mm Mushroom (RAL 9002)
Color Chart
Number Color
Wire 1 Yellow/Green

Construction and Dimensions

Cabling
Description
1 wire

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: AWM 10434
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE43780.001000 Beige Reel 1,000 m 8719605026538

History

Update and Revision: Revision Number: 0.148 Revision Date: 04-08-2022
