Product Overview
| Suitable Applications: |
Single core non-sheathed cable with solid conductor for internal wiring for conductor temperatures up to 70C |

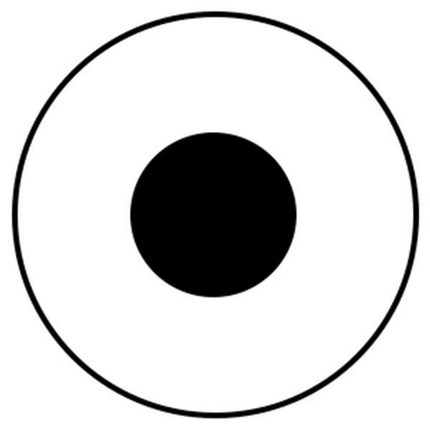

Physical Characteristics (Overall)
| Stranding |
Material |
Nominal Diameter |
| Solid |
BCA – Bare Copper Alloy |
0.4 mm |
| Table Notes: |
Alloy is Copper-Nickel |
| Type |
Material |
Nominal Diameter |
Diameter +/- Tolerance |
Min. Wall Thickness |
Nominal Wall Thickness |
| Insulation |
PVC – Polyvinyl Chloride |
0.82 mm |
0.05 mm |
0.175 mm |
0.41 mm |
Construction and Dimensions
| Min Elongation at Breakof Conductors: |
5 % |
Electrical Characteristics
| Voltage Test (In Line) |
| 1 kV AC |
Standards
| UL AWM Style Compliance: |
N/A |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor |
Flammability, LS0H, Toxicity Testing
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| BE43007.0010K |
Black |
Reel |
10,000 m |
8719605026293 |
| BE43007.0210K |
Brown |
Reel |
10,000 m |
8719605026316 |
| BE43007.0310K |
Green |
Reel |
10,000 m |
8719605026323 |
| BE43007.0110K |
White |
Reel |
10,000 m |
8719605026309 |
History
| Update and Revision: |
Revision Number: 0.145 Revision Date: 03-04-2023 |
