BE41508 - Lead Wire, #8 Str BC, PVC Ins, AWM 1017

BE41508 – Lead Wire, #8 Str BC, PVC Ins, AWM 1017

Call for Price

Compare
SKU: BE41508 Categories: , , ,

Description

Product Overview

Suitable Applications: UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 Vac.; CSA Type TEW, FT1

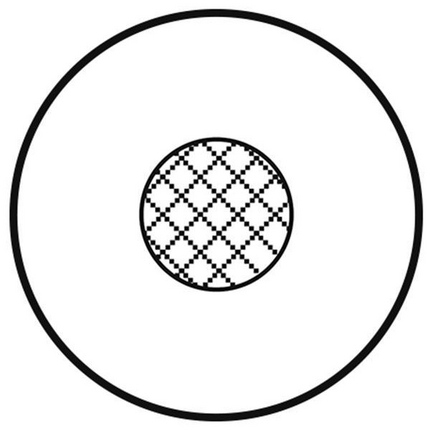

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Construction n x D
8 Stranded BC – Bare Copper 168×0.254 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC – Polyvinyl Chloride 6.7 mm 0.1 mm 1.01 mm 1.14 mm

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 2.06 Ohm/km
Min Insulation Resistance: 0.762 MOhm*km
Voltage
UL Voltage Rating
600 V

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: AWM 1017
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
CSA Flammability: FT1
UL voltage rating: 600 V RMS

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41508.00300 Black Reel 300 m 8719605026170
BE41508.001500 Black Reel 1,500 m 8719605026163
BE41508.05300 Blue Reel 300 m 8719605026279
BE41508.051500 Blue Reel 1,500 m 8719605026262
BE41508.031500 Brown Reel 1,500 m 8719605026224
BE41508.04300 Red Reel 300 m 8719605026255
BE41508.041500 Red Reel 1,500 m 8719605026248
BE41508.02300 Violet Reel 300 m 8719605026217
BE41508.021500 Violet Reel 1,500 m 8719605026200
BE41508.01300 Yellow, Green Ring Reel 300 m 8719605026194
BE41508.011500 Yellow, Green Ring Reel 1,500 m 8719605026187

History

Update and Revision: Revision Number: 0.165 Revision Date: 04-08-2022
