BE41494 - Speaker Cable PVC 2x0.50mm², parallel, CPR Eca.

BE41494 – Speaker Cable PVC 2×0.50mm², parallel, CPR Eca.

Call for Price

Compare
SKU: BE41494 Categories: , , ,

Description

Product Overview

Suitable Applications: Speaker cable

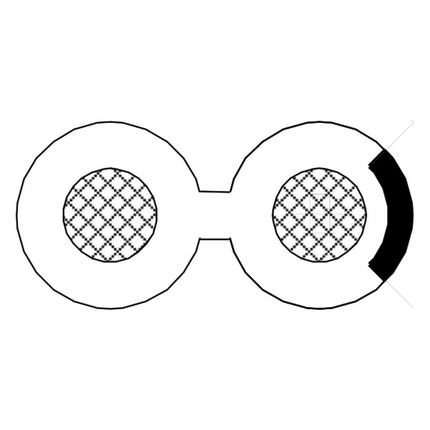

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Construction n x D
Stranded BC – Bare Copper 0.5 mm² 28×0.15 mm
Table Notes: According to IEC 228 Class 5
Conductor Count: 2
Outer Jacket
Material Min. Wall Thickness Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.30 mm 0.50 mm
Table Notes: Width of the stripe between 45C and 90C of the core-circumference

Construction and Dimensions

OuterJacket1, Nominal Width: 3.88 mm
OuterJacket1, Nominal Wall Thickness: 1.89 mm
OuterJacket1, Nom Thickness +/- Toler: 0.15 mm

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
39 Ohm/km
Min Insulation Resistance: 2 MOhm*km
Voltage
Voltage Rating [V]
48 V

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41494.001000 Black, White Stripe Reel 1,000 m 8719605025883
BE41494.002000 Black, White Stripe Reel 2,000 m 8719605025890
BE41494.008000 Black, White Stripe Reel 8,000 m 8719605025906
BE41494.018000 Black, White Stripe Reel 8,000 m 8719605025913

History

Update and Revision: Revision Number: 0.157 Revision Date: 02-15-2024
