BE41436 - Lead Wire, 0.375mm² Str BC, PVC Ins, 70°C

BE41436 – Lead Wire, 0.375mm² Str BC, PVC Ins, 70°C

Call for Price

Compare
SKU: BE41436 Categories: , , ,

Description

Product Overview

Suitable Applications: IEC 189-3, VMDS 70C

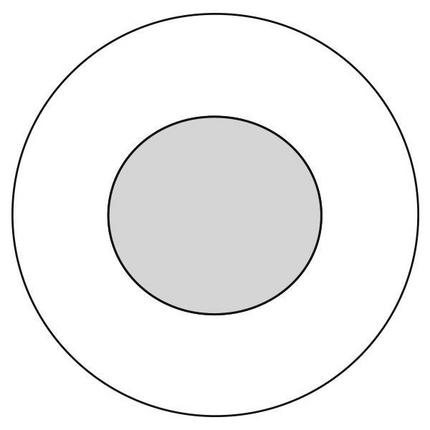

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Construction n x D
Stranded BC – Bare Copper 0.375 mm² 12×0.20 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC – Polyvinyl Chloride 1.9 mm 0.1 mm 0.4 mm

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 52 Ohm/km
Min Insulation Resistance: 10 MOhm*km

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41436.004000 Black Reel 4,000 m 8719605025784
BE41436.014000 Black Reel 4,000 m 8719605025791

History

Update and Revision: Revision Number: 0.149 Revision Date: 04-08-2022
