BE41424 - Lead Wire, 0.75mm² Str BC, PVC Ins, 70°C

BE41424 – Lead Wire, 0.75mm² Str BC, PVC Ins, 70°C

Call for Price

Compare
SKU: BE41424 Categories: , , ,

Description

Product Overview

Suitable Applications: IEC 189-3, VMDS 70C

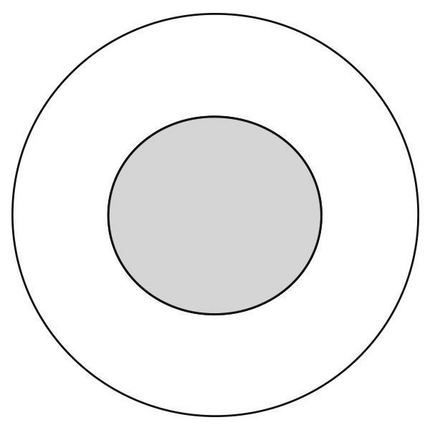

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Construction n x D
Stranded BC – Bare Copper 0.75 mm² 24×0.20 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC – Polyvinyl Chloride 1.77 mm 0.06 mm 0.25 mm
Table Notes: TI1

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 26 Ohm/km
Min Insulation Resistance: 10 MOhm*km

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41424.004000 Black Reel 4,000 m 8719605025685
BE41424.094000 Blue Reel 4,000 m 8719605025777
BE41424.044000 Brown Reel 4,000 m 8719605025722
BE41424.084000 Gray Reel 4,000 m 8719605025760
BE41424.054000 Green Reel 4,000 m 8719605025739
BE41424.064000 Orange Reel 4,000 m 8719605025746
BE41424.074000 Red Reel 4,000 m 8719605025753
BE41424.034000 Violet Reel 4,000 m 8719605025715
BE41424.014000 White Reel 4,000 m 8719605025692
BE41424.024000 Yellow Reel 4,000 m 8719605025708

History

Update and Revision: Revision Number: 0.145 Revision Date: 03-04-2023
