Description
Product Overview
| Suitable Applications: | UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 volt, VW-1, oil 60C; CSA Equipment wires C22.2 no. 127 Type TEW, 105C, 600V, FT1, oil 60C |

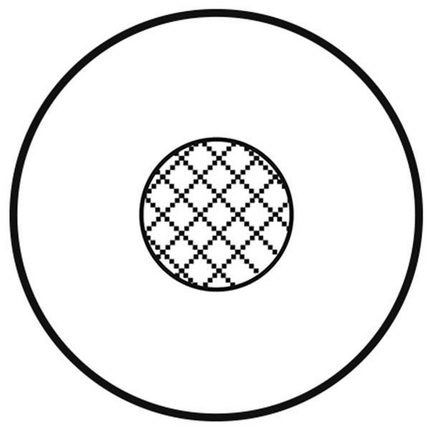

Construction Details
Conductor
| Size | Stranding | Material | Notes |
|---|---|---|---|
| 8 AWG | Stranded | BC – Bare Copper | Construction: 2156×0.071 |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 1.19 mm (0.0469 in) | 7.5 mm (0.30 in) |
Electrical Characteristics
Voltage
| UL Voltage Rating |
|---|
| 600 V |
Mechanical Characteristics
Temperature
| UL Temperature |
|---|
| 80°C (CSA 105°C) |
Standards and Compliance
| Environmental Suitability: | Indoor, Oil Resistance |
| Flammability / Reaction to Fire: | VW-1 |
| AWM Compliance: | AWM 1017, TEW |
| Military Compliance: | N/A |
History
| Update and Revision: | Revision Number: 0.170 Revision Date: 03-04-2023 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| BE41339.041400 | Blue | Reel | 1,400 m | 8719605025678 |
| BE41339.031400 | Red | Reel | 1,400 m | 8719605025661 |
| BE41339.01500 | Yellowgreen | Reel | 500 m | 8719605025630 |
| BE41339.011400 | Yellowgreen | Reel | 1,400 m | 8719605025623 |
