BE41230 - Lead Wire, 0.2mm² Str BC, PVC Ins, 70°C

BE41230 – Lead Wire, 0.2mm² Str BC, PVC Ins, 70°C

Call for Price

Compare
SKU: BE41230 Categories: , , ,

Description

Product Overview

Suitable Applications: IEC 189-3, VMDS 70C

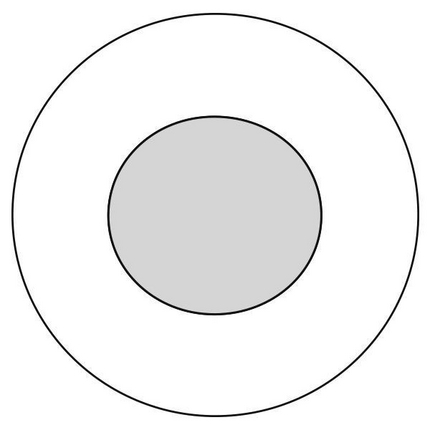

Physical Characteristics (Overall)

Conductor
Stranding Material Cross Section Construction n x D
Stranded BC – Bare Copper 0.2 mm² 7×0.20 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness
Insulation PVC – Polyvinyl Chloride 1.7 mm 0.08 mm 0.4 mm

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 87.2 Ohm/km
Min Insulation Resistance: 10 MOhm*km

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41230.002400 Black Reel 2,400 m 8719605025135
BE41230.005000 Black Reel 5,000 m 8719605025142
BE41230.092400 Blue Reel 2,400 m 8719605025234
BE41230.042400 Brown Reel 2,400 m 8719605025180
BE41230.082400 Gray Reel 2,400 m 8719605025227
BE41230.052400 Green Reel 2,400 m 8719605025197
BE41230.062400 Orange Reel 2,400 m 8719605025203
BE41230.072400 Red Reel 2,400 m 8719605025210
BE41230.032400 Violet Reel 2,400 m 8719605025173
BE41230.012400 White Reel 2,400 m 8719605025159
BE41230.022400 Yellow Reel 2,400 m 8719605025166

History

Update and Revision: Revision Number: 0.149 Revision Date: 04-08-2022
