BE41201 - Lead Wire, #20 Str TC, PVC Ins, AWM 1007

BE41201 – Lead Wire, #20 Str TC, PVC Ins, AWM 1007

Call for Price

Compare
SKU: BE41201 Categories: , , ,

Description

Product Overview

Suitable Applications: UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

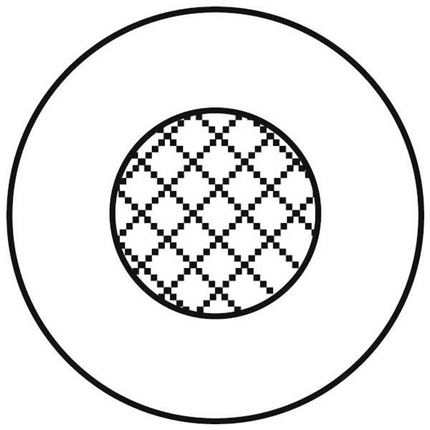

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Construction n x D
24 Stranded TC – Tinned Copper 7×0.20 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC – Polyvinyl Chloride 1.44 mm 0.06 mm 0.33 mm 0.38 mm

Construction and Dimensions

Min Elongation at Breakof Conductors: 5 %

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 83.9 Ohm/km
Min Insulation Resistance: 0.762 MOhm*km
Voltage
UL Voltage Rating
300 V

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: AWM 1007
CSA Rating: CSA-C22.2 no. 16 Type TR-64
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41201.003600 Black Reel 3,600 m 8719605024794
BE41201.0020K Black Reel 20,000 m 8719605024787
BE41201.101350 Blue Reel 1,350 m 8719605024893
BE41201.103600 Blue Reel 3,600 m 8719605024909
BE41201.043600 Brown Reel 3,600 m 8719605024831
BE41201.083600 Gray Reel 3,600 m 8719605024879
BE41201.053600 Green Reel 3,600 m 8719605024848
BE41201.063600 Orange Reel 3,600 m 8719605024855
BE41201.093600 Pink Reel 3,600 m 8719605024886
BE41201.073600 Red Reel 3,600 m 8719605024862
BE41201.013600 White Reel 3,600 m 8719605024800
BE41201.023600 Yellow Reel 3,600 m 8719605024817

History

Update and Revision: Revision Number: 0.163 Revision Date: 04-08-2022
