BE41138 - Lead Wire, 0.4 mm BC, PVC Ins

BE41138 – Lead Wire, 0.4 mm BC, PVC Ins

Call for Price

Compare
SKU: BE41138 Categories: , , ,

Description

Product Overview

Suitable Applications: IEC 189-3, VMD 70C rated 300/500V

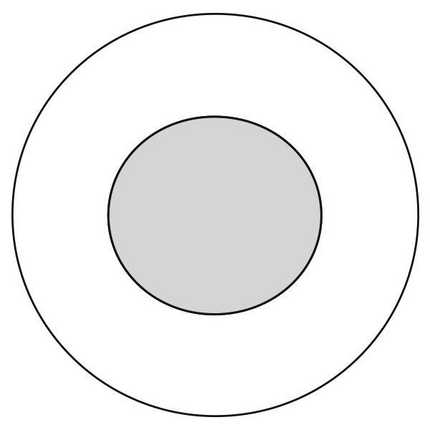

Physical Characteristics (Overall)

Conductor
Stranding Material Nominal Diameter
Solid BC – Bare Copper 0.4 mm
Conductor Count: 1
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance Min. Wall Thickness Nominal Wall Thickness
Insulation PVC – Polyvinyl Chloride 0.82 mm 0.05 mm 0.15 mm 0.2 mm

Electrical Characteristics

Conductor DCR
Element Max. Conductor DCR
Conductor(s) 144 Ohm/km
Voltage
Voltage Rating [V]
300 V

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
BE41138.0310K Blue Reel 10,000 m 8719605024770
BE41138.0210K Gray Reel 10,000 m 8719605024763
BE41138.0110K Red Reel 10,000 m 8719605024756
BE41138.0010K Yellow Reel 10,000 m 8719605024749

History

Update and Revision: Revision Number: 0.153 Revision Date: 03-06-2023
