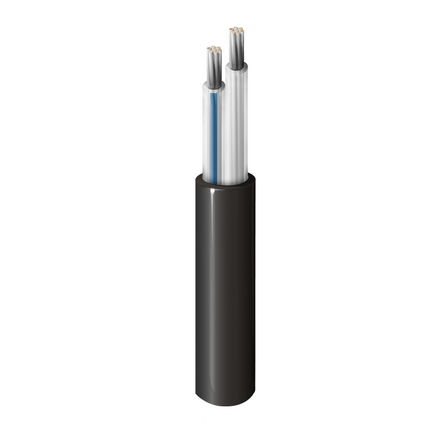

AUUTPA3799 - AUTOMOTIVE ETHERNET SPE 100MBPS 1P 26AWG J/UTP PVC

AUUTPA3799 – AUTOMOTIVE ETHERNET SPE 100MBPS 1P 26AWG J/UTP PVC

Call for Price

Compare
SKU: AUUTPA3799 Categories: , , ,

Description

Product Overview

Suitable Applications: Automotive Ethernet

Construction Details

Conductor
Size Stranding Material No. of Pairs
26 7×34 TC – Tinned Copper 1
Insulation
Material Nom. Insulation Diameter Color Code
PP – Polypropylene 0.88 mm (0.035 in) Natural & Natural/Blue
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 3.00 mm (0.118 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
150 Ohm/km (46 Ohm/1000ft) 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB] Min. RL (Return Loss) [dB]
1 0.06 20.0
10 0.16
20 20.0
33 0.31
66 0.45 14.8
Voltage
Voltage Rating
60 V

Mechanical Characteristics

Temperature
Operating
-40°C To +105°C
Bulk Cable Weight: 11.4 kg/km (7.66 lbs/1000ft)

Standards and Compliance

Flammability / Reaction to Fire: FT2
IEEE Compliance: IEEE 802.3bw

Product Notes

Notes: Cabling: 2C, Direction: S, Pitch: lt/=15

History

Update and Revision: Revision Number: 0.55 Revision Date: 02-15-2024
