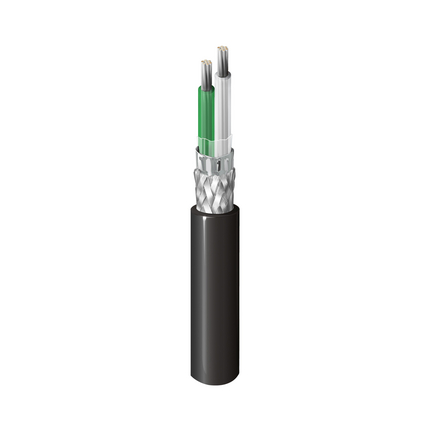

AUSTPC3802 - AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG STP PVC

AUSTPC3802 – AUTOMOTIVE ETHERNET SPE 10GBPS 1P 26AWG STP PVC

Call for Price

Compare
SKU: AUSTPC3802 Categories: , , ,

Description

Product Overview

Suitable Applications: For telecommunication equipment, Automotive Ethernet

Construction Details

Conductor
Size Stranding Material No. of Pairs
26 7×34 TC – Tinned Copper 1
Insulation
Material Nom. Insulation Diameter Color Code Notes
PP – Polypropylene 1.24 mm (0.0488 in) White & Green Foamed PP
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 3.80 mm (0.150 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
150 Ohm/km (46 Ohm/1000ft) 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB]
1 0.68 dB 20
250 8.66 dB 20
500 12.14 dB 20
750 14.87 dB 18
1000 17.22 dB 17
1250 19.33 dB 16
1500 21.27 dB 15
1750 23.08 dB 14
2000 24.80 dB 14
2250 26.43 dB 13
2500 27.99 dB 13
2750 29.50 dB 12
3000 30.96 dB 12
3250 32.37 dB 12
3500 33.75 dB 12
3750 35.09 dB 12
4000 36.41 dB 12
Screening
Frequency Min. Screening Attenuation
30 MHz 45 dB
4000 MHz 45 dB
Voltage
Voltage Rating
60 V

Mechanical Characteristics

Temperature
Operating
-40°C To +105°C
Bulk Cable Weight: 25.5 kg/km (17.1 lbs/1000ft)

Standards and Compliance

Flammability / Reaction to Fire: FT2, IEC 60332-1 Flammability
IEEE Compliance: IEEE 802.3ch

Product Notes

Notes: Cabling: 2C, Direction: S

History

Update and Revision: Revision Number: 0.18 Revision Date: 02-15-2024
