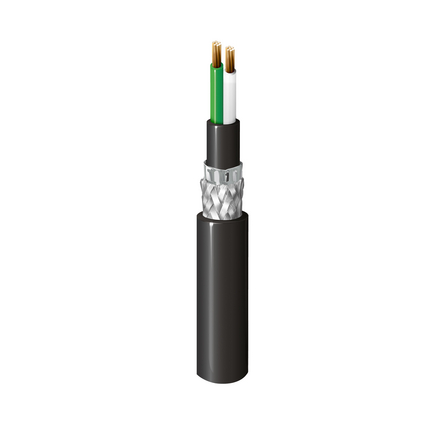

AUSTPB3801 - AUTOMOTIVE ETHERNET SPE 1GBPS 1P 26AWG STP PVC

AUSTPB3801 – AUTOMOTIVE ETHERNET SPE 1GBPS 1P 26AWG STP PVC

Call for Price

Compare
SKU: AUSTPB3801 Categories: , , ,

Description

Product Overview

Suitable Applications: Automotive Ethernet

Construction Details

Conductor
Size Stranding Material No. of Pairs
26 7×34 BCA – Bare Copper Alloy 1
Insulation
Material Nom. Insulation Diameter Color Code
PP – Polypropylene 0.91 mm (0.036 in) White & Green
Inner Jacket
Material Nom. Diameter
PP – Polypropylene 2.80 mm (0.110 in)
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 4.25 mm (0.167 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
190 Ohm/km (58 Ohm/1000ft) 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) [dB] Min. RL (Return Loss) [dB]
1 0.037 22.0
10 0.011 22.0
100 0.344 19.0
600 0.869 14.0
Voltage
Voltage Rating
60 V

Mechanical Characteristics

Temperature
Operating
-40°C To +105°C
Bulk Cable Weight: 23.5 kg/km (15.8 lbs/1000ft)

Standards and Compliance

Flammability / Reaction to Fire: FT2
IEEE Compliance: IEEE 802.3bp

Product Notes

Notes: Twisting: 2C, Direction: S

History

Update and Revision: Revision Number: 0.53 Revision Date: 02-15-2024
