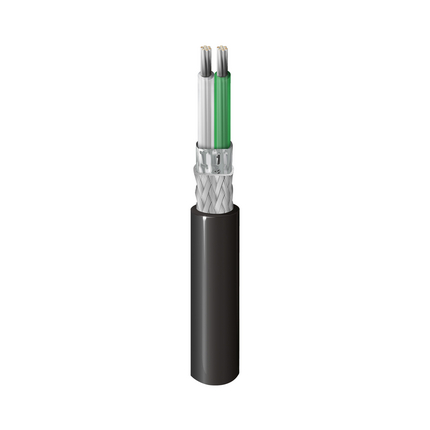

AUSPPD3899 - AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC

AUSPPD3899 – AUTOMOTIVE ETHERNET SPE 25GBPS 1P 26AWG SPP PVC

Call for Price

Compare
SKU: AUSPPD3899 Categories: , , ,

Description

Product Overview

Suitable Applications: Automotive Ethernet

Construction Details

Conductor
Size Stranding Material No. of Pairs
26 7×34 TC – Tinned Copper 1
Insulation
Material Nom. Insulation Diameter Color Code Notes
PP – Polypropylene 1.25 mm (0.0492 in) White & Green Foamed PP
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 4 mm (0.16 in)

Electrical Characteristics

Electricals
Max. Conductor DCR Nom. Characteristic Impedance
150 Ohm/km (46 Ohm/1000ft) 100 Ohm
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. RL (Return Loss) [dB]
100 0.32 dB 20
500 0.72 dB 20
900 0.99 dB 17
1100 1.09 dB 16.4
1500 1.31 dB 15.05
1700 1.40 dB 14.5
2100 1.59 dB 13.5
2500 1.75 dB 12.8
2900 1.92 dB 11.8
3100 2.01 dB 11.3
3500 2.15 dB 10.9
3900 2.31 dB 10.5
4300 2.46 dB 10.1
4700 2.64 dB 9.7
5100 2.77 dB 9.4
5500 2.91 dB 9.1
5900 3.06 dB 8.8
6300 3.22 dB 8.5
6700 3.43 dB 8.2
7100 3.63 dB 8.0
7500 3.84 dB 8
7900 4.16 dB 8
8300 4.46 dB 8
8700 4.75 dB 8
9000 4.90 dB 8
Screening
Frequency Min. Screening Attenuation
30 MHz 45 dB
4000 MHz 45 dB
Voltage
Voltage Rating
60 V

Mechanical Characteristics

Temperature
Operating
-40°C To +105°C
Bulk Cable Weight: 44.9 kg/km (30.2 lbs/1000ft)

Standards and Compliance

Flammability / Reaction to Fire: FT2
IEEE Compliance: IEEE 802.3cy

History

Update and Revision: Revision Number: 0.16 Revision Date: 02-15-2024
