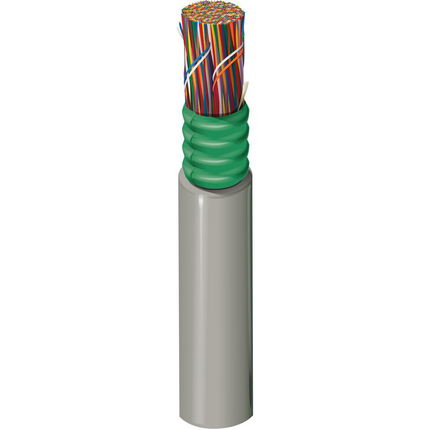

ATMM100 - CAT3 Backbone, 100pr, Armor Shield, PVC Jkt, CMR

ATMM100 – CAT3 Backbone, 100pr, Armor Shield, PVC Jkt, CMR

Call for Price

Compare
SKU: ATMM100 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Backbone Cable

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
24 Solid BC – Bare Copper 100
Conductor Count: 200
Total Number of Pairs: 100
Insulation
Material
PO – Polyolefin (Foam)
Bonded-Pair: N/A
Color Chart
Number Color
1 White & Blue
2 White & Orange
3 White & Green
4 White & Brown
5 White & Slate
6 Red & Blue
7 Red & Orange
8 Red & Green
9 Red & Brown
10 Red & Slate
11 Black & Blue
12 Black & Orange
13 Black & Green
14 Black & Brown
15 Black & Slate
16 Yellow & Blue
17 Yellow & Orange
18 Yellow & Green
19 Yellow & Brown
20 Yellow & Slate
21 Violet & Blue
22 Violet & Orange
23 Violet & Green
24 Violet & Brown
25 Violet & Slate
Group One Binder White/Blue
Group Two Binder White/Orange
Group Three Binder White/Green
Group Four Binder White/Brown
Color Chart 2
Number Color
1 Blue/White
2 Orange/White
3 Green/White
4 Brown/White
Outer Shield
Material
Aluminum
Outer Jacket
Material Nominal Diameter Ripcord
PVC – Polyvinyl Chloride 0.850 in Yes

Construction and Dimensions

Armor
Type of Armor Material Thickness of Armoring Tape
Corrugated Aluminum .008 in

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Max. DCR Unbalance
93.8 Ohm/km 5 %
Capacitance
Max. Capacitance Unbalance Nom.Mutual Capacitance
330 pF/100m 17 pF/ft
Delay
Frequency [MHz] Max. Delay Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
16 MHz 543 ns/100m 45 ns/100m 68%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. RL (Return Loss) [dB] Max./Min. Fitted Impedance
0.772 MHz 2.2 dB/100m 47.0 dB 43.0 dB 50.1 dB 46.1 dB 100 +/- 15
1.0 MHz 2.6 dB/100m 45.0 dB 41.0 dB 47.8 dB 43.8 dB 12.0 dB 100 +/- 15
4.0 MHz 5.6 dB/100m 36.0 dB 32.0 dB 36.0 dB 32.0 dB 12.0 dB 100 +/- 15
8.0 MHz 8.5 dB/100m 31.0 dB 27.0 dB 28.3 dB 24.3 dB 12.0 dB 100 +/- 15
10.0 MHz 9.7 dB/100m 30.0 dB 26.0 dB 26.2 dB 22.2 dB 12.0 dB 100 +/- 15
16.0 MHz 13.1 dB/100m 27.0 dB 23.0 dB 20.1 dB 16.1 dB 10.0 dB 100 +/- 15
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Installation Temperature Range: -20°C To +60°C
UL Temp Rating: 60°C
Storage Temperature Range: -30°C To +60°C
Operating Temperature Range: -30°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 414 lbs/1000ft
Max. Pull Tension: 600 lbs
Min. Bend Radius During Installation: 17.0 in
Min. Bend Radius/Minor Axis: 8.5 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMR
CPR Euroclass: Eca
Data Category: Category 3
ANSI Compliance: S-90-661-2012 Category 3, ANSI/NEMA WC-63.1 Category 3
TIA/EIA Compliance: ANSI/TIA-568-C.2 Category 3

Applicable Environmental and Other Programs

Environmental Space: Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes
EU REACH SVHC Compliance (yyyy-mm-dd): 2017-07-10
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Burial: No
Suitability – Hazardous Locations: No
Suitability – Indoor: Yes
Suitability – Non-Halogenated: No
Suitability – Oil Resistance: No
Suitability – Outdoor: No
Suitability – Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

CSA/C(UL) Flammability: FT4
UL Flammability: UL 1666 Riser
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
ATMM100 008CUT Gray Cut to Length 612825062004
ATMM100 008CUT Gray Cut to Length 1 ft 612825062004

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage/Meter Markings. Corrugated Aluminum Armor Bonded to the Jacket.

History

Update and Revision: Revision Number: 0.411 Revision Date: 12-19-2022
