Description

WHY ARMORED PATCH CORDS ARE WORTH IT:

nanoFIBER Stainless-Steel Armored Patch Cords protect the cables from mishandling, poor installations, crimping, bending, vermin attacks that will compromise the signal.
nanoFIBER™ armored cables allow fragile optical fiber to be installed in hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
nanoFIBER™ protects the glass fiber, adds strength with stainless-steel armor and are better than conventional patch cords!
Long In-Building pre-terminated cords are safe during installation and construction projects. Need for conduit can be averted in many installations.
Usage in all Pro AV, IT, FTTH, FTTD, FTTx, broadcast, data centers and any environment where loss of signal is not an option.
Can customize any solution from lengths, terminations and outer jackets to handle all environments.
MTP/MPO OS2 are by far the most common cables.
Stock Patch Cords –Armored PLENUM MPO-MPO in popular lengths: 1M, 2M, 3M, 5M, 10M, 15M, 25M, 35M, 50M, 75M and 100M.

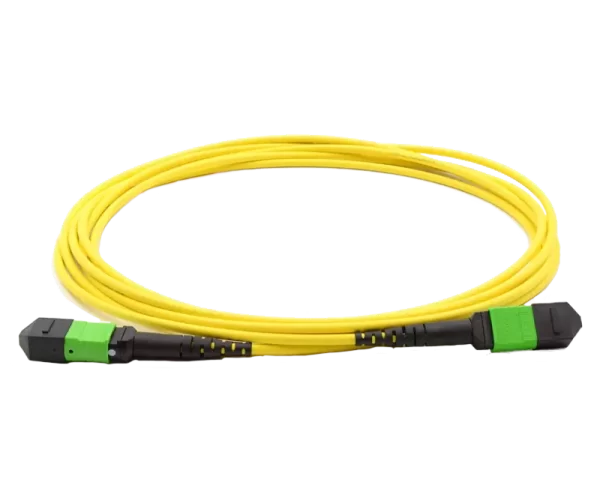

MTP/MPO Male to MTP/MPO Male OS2 Single Mode Trunk Cable
The MTP/MPO patch cord is bend-insensitive and pre-terminated with MTP® PRO connectors, factory polished for low loss performance.
MTP/MPO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP/MPO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Product Specification

Connector A
US Conec MTP® PRO Male (Pinned)
Connector B
US Conec MTP® PRO Male (Pinned)

Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm

Polish Type
APC to APC
Minimum Bend Radius
10mm

Insertion Loss
0.35dB
Return Loss
≥60dB

Attenuation at 1310nm
≤0.32dB/km
Attenuation at 1550nm
≤0.18dB/km

Trunk Diameter
3.0mm
Cable Jacket
OFNP

Installation Tensile Load
100 N
Long-Term Tensile Load
50 N

Operating Temperature
-10°C to +70°C
Storage Temperature
-40°C to +85°C

* MTP® is a registered trademark of US Conec Ltd. US Conec
