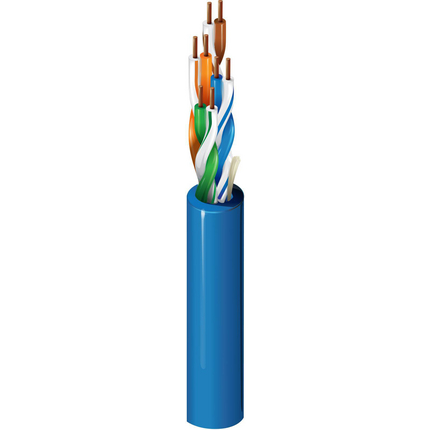

AP1690 - CAT 5E 4P 24AWG, U/UTP, PVC Jkt, Indoor,CM

AP1690 – CAT 5E 4P 24AWG, U/UTP, PVC Jkt, Indoor,CM

Call for Price

Compare
SKU: AP1690 Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Horizontal Cable, 1000BaseT, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 Solid BC – Bare Copper 4
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene 0.87 mm (0.034 in) Blue & White with Blue Stripe, Orange & White with Orange Stripe, Green & White with Green Stripe, Brown & White with Brown Stripe
Outer Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 4.8 mm (0.19 in) No

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Mutual Capacitance Max. Capacitance Unbalance Nom. Characteristic Impedance
93.8 Ohm/km (28.6 Ohm/1000ft) 56 pF/m (17 pF/ft) 330 pF/100m 100 Ohm
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop.
100 MHz 538 ns/100m 45 ns/100m 70%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACR [dB] Min. PSACR [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB]
1 2.0 dB/100m 65.3 62.3 63.3 60.3 63.8 60.8 20.0
4 4.1 dB/100m 56.3 53.3 52.2 49.2 51.7 48.7 23.0
8 5.8 dB/100m 51.8 48.8 46.0 45.0 45.7 42.7 24.5
10 6.5 dB/100m 50.3 47.3 43.8 40.8 43.8 40.8 25.0
16 8.2 dB/100m 47.3 44.3 39.1 36.1 39.7 36.7 25.0
20 9.3 dB/100m 45.8 42.8 36.5 33.5 37.8 34.8 25.0
25 10.4 dB/100m 44.3 41.3 33.9 30.9 35.8 32.8 24.3
31.25 11.7 dB/100m 42.9 39.9 31.0 28.0 33.9 30.9 23.6
62.5 17.0 dB/100m 38.4 35.4 21.4 18.4 27.8 24.9 21.5
100 22.0 dB/100m 35.3 32.3 13.3 10.3 23.8 20.8 20.1

Mechanical Characteristics

Temperature
Operating
-20°C To +75°C
Bend Radius
Installation Min.
12.7 mm (0.500 in)
Max. Pull Tension: 110 N (25 lbf)
Bulk Cable Weight: 30 kg/km (20 lbs/1000ft)

Standards and Compliance

Environmental Suitability: Indoor, Indoor
Flammability / Reaction to Fire: UL1685
NEC / UL Compliance: CM
CEC / C(UL) Compliance: CM
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA 568.2-D
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-5
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Jacket sequentially marked

History

Update and Revision: Revision Number: 0.41 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length
AP1690 006U1000 Blue Unreel 1,000 ft
AP1690 008U1000 Grey Unreel 1,000 ft
AP1690 004U1000 Yellow Unreel 1,000 ft
