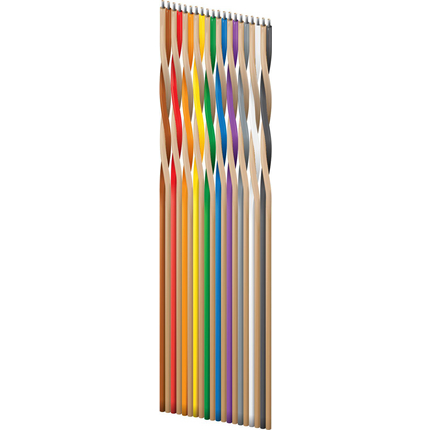

Product Overview
| Suitable Applications: |
Internal interconnection, internal wiring of electronic equipment, reduced crosstalk in balanced mode, can be mass-terminatable in flat sections with standard IDC connectors |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 28 |
7×36 |
TC – Tinned Copper |
7 |
| Material |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.010 in |
| Number |
Color |
| 1 |
Brown/Tan |
| 2 |
Red/Tan |
| 3 |
Orange/Tan |
| 4 |
Yellow/Tan |
| 5 |
Green/Tan |
| 6 |
Blue/Tan |
| 7 |
Purple/Tan |
Construction and Dimensions
| Conductor Spacing Center-Center Flat Section: |
.050 +/- .005 in |
| Conductor Spacing Center-Center Outside: |
.650 +/- .015 in |
| Substrate Thickness and Material: |
.010 in, Clear PVC |
| Twisted Pair Spacing Center-Center: |
0.100 in |
| Overall Flat Section Length: |
2.0 +.50 – 0 in |
| Overall Twisted Length: |
18 in |
| OuterJacket1, Nominal Width: |
0.726 in |
| OuterJacket1, Nom Thick Flat Section: |
0.042 in |
| OuterJacket1, Nom Thick Twisted Section: |
0.084 in |
Electrical Characteristics
| Nominal Conductor DCR |
| 68.2 Ohm/1000ft |
| Element |
Nom. Capacitance Conductor to Conductor |
| @ 1 kHz |
20 pF/ft |
| @ 1 MHz |
16 pF/ft |
| Min Insulation Resistance: |
10,000 MOhm |
| Element |
Nominal Inductance |
| @ 1 MHz |
0.24 µH/ft |
| Nominal Balanced Characteristic Impedance [] |
Nominal Characteristic Impedance |
Nominal Characteristic Impedance Description |
Nominal Unbalanced Characteristic Impedance |
| 115 Ohm |
115 Ohm |
Balanced |
100 Ohm |
|
100 Ohm |
Unbalanced |
|
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
| 10 MHz |
3.5 dB/100ft |
| 20 MHz |
5.5 dB/100ft |
| 30 MHz |
7.2 dB/100ft |
| 40 MHz |
8.8 dB/100ft |
| 50 MHz |
10.2 dB/100ft |
| 60 MHz |
12 dB/100ft |
| 70 MHz |
13 dB/100ft |
| 80 MHz |
14.2 dB/100ft |
| 90 MHz |
15 dB/100ft |
| 100 MHz |
16 dB/100ft |
| Table Notes: |
18″ of twisted pairs and 2″ of flat section. The transition area is included in the twisted length to assure a full 2 inches of flat termination area. |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 1.6 ns/ft |
64% |
| Description |
Start Frequency [MHz] |
Stop Frequency [MHz] |
dB Suppression |
| 10 ft. sample length |
10 MHz |
100 MHz |
35 dB |
| Element |
Typical Unbalanced NEXT % |
Typical Unbalanced FEXT % |
Typical Cross Talk Pulse Rise Time (ns) |
| 10 ft. sample length all grounds connected together. |
5.8 |
5.2 |
3 ns |
| 10 ft. sample length all grounds connected together. |
4 |
3.2 |
5 ns |
| 10 ft. sample length all grounds connected together. |
2.5 |
2.8 |
7 ns |
| Max. Recommended Current [A] |
| 1 Amp per Conductor at 20ºC |
| Dielectric Withstand Voltage |
UL Voltage Rating |
| 2000 V |
300 V |
Temperature Range
| Operating Temperature Range: |
-20°C to +105°C |
Mechanical Characteristics
| Bulk Cable Weight: |
29 lbs/1000ft |
| Min. Bend Radius/Minor Axis: |
1.25 in |
Standards
| UL AWM Style Compliance: |
AWM 2693, AWM 2697 |
Applicable Environmental and Other Programs
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/11/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
Yes |
| CA Prop 65 (CJ for Wire and Cable): |
Yes |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Length |
UPC |
| 9V28014 000H100 |
None |
100 ft |
612825222125 |
| Footnote: |
E – MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25′. |
History
| Update and Revision: |
Revision Number: 0.331 Revision Date: 12-22-2023 |
