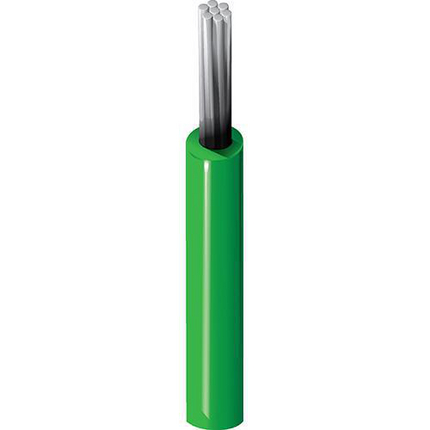

9975 - Lead Wire, #24 Sol TC, PVC Ins, AWM 1061

9975 – Lead Wire, #24 Sol TC, PVC Ins, AWM 1061

Call for Price

Compare
SKU: 9975 Categories: , , ,

Description

Product Overview

Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, wire wrap applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 24 Solid TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC – Polyvinyl Chloride 0.01 in (0.25 mm) 0.04 in (1.0 mm)
Overall Cable Diameter (Nominal): 0.040 in (1.0 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
25.2 Ohm/1000ft Single conductor in free air @ 30ºC: 3.5 A
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
0.16 in (4.1 mm) 0.16 in (4.1 mm)
Max. Pull Tension: 5.1 lb
Bulk Cable Weight: 2 lbs/1000ft

Standards and Compliance

Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
AWM Compliance: AWM 1061, CSA AWM I A/B
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.478 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9975 010100 Black Reel 100 ft 612825265528
9975 0101000 Black Reel 1,000 ft 612825265535 P
9975 0105000 Black Reel 5,000 ft 612825265542 P
9975 0131000 Blue, Dark Reel 1,000 ft 612825265559 P
9975 0011000 Brown Reel 1,000 ft 612825265405 P
9975 0081000 Gray Reel 1,000 ft 612825265504 P
9975 0051000 Green, Dark Reel 1,000 ft 612825265481 P
9975 0031000 Orange Reel 1,000 ft 612825265467 P
9975 002100 Red Reel 100 ft 612825265436
9975 0021000 Red Reel 1,000 ft 612825265443 P
9975 0025000 Red Reel 5,000 ft 612825265450 P
9975 0071000 Violet Reel 1,000 ft 612825265498 P
9975 0091000 White Reel 1,000 ft 612825265511 P
9975 0041000 Yellow Reel 1,000 ft 612825265474 P
