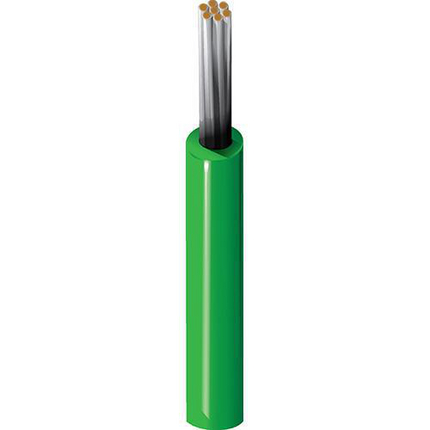

9923 - Lead Wire, #24 Str TC, PVC Ins, AWM 1007 AWM 1569

9923 – Lead Wire, #24 Str TC, PVC Ins, AWM 1007 AWM 1569

Call for Price

Compare
SKU: 9923 Categories: , , ,

Description

Product Overview

Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 24 AWG 7×32 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC – Polyvinyl Chloride 0.016 in (0.41 mm) 0.056 in (1.4 mm)
Overall Cable Diameter (Nominal): 0.056 in (1.4 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
28.7 Ohm/1000ft Single conductor in free air @ 30ºC: 5 A
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -20°C To +105°C
Bend Radius
Stationary Min. Installation Min.
0.56 in (14 mm) 0.56 in (14 mm)
Max. Pull Tension: 6 lbs (2.7 kg)
Bulk Cable Weight: 3 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
AWM Compliance: AWM 1007, AWM 1569
CEC / C(UL) Compliance: TRSR-64
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.494 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9923 010100 Black Reel 100 ft 612825263463
9923 0101000 Black Reel 1,000 ft 612825263470 P
9923 0105000 Black Reel 5,000 ft 612825263487 C
9923 0131000 Blue, Dark Reel 1,000 ft 612825263494 P
9923 0011000 Brown Reel 1,000 ft 612825263364 P
9923 0081000 Gray Reel 1,000 ft 612825263425 P
9923 0051000 Green, Dark Reel 1,000 ft 612825263401 P
9923 0031000 Orange Reel 1,000 ft 612825263388 P
9923 002100 Red Reel 100 ft 612825263371
9923 0021000 Red Reel 1,000 ft 612825349884 P
9923 0025000 Red Reel 5,000 ft P
9923 0071000 Violet Reel 1,000 ft 612825263418 P
9923 009100 White Reel 100 ft 612825263432
9923 0091000 White Reel 1,000 ft 612825263449 P
9923 0041000 Yellow Reel 1,000 ft 612825263395 P
