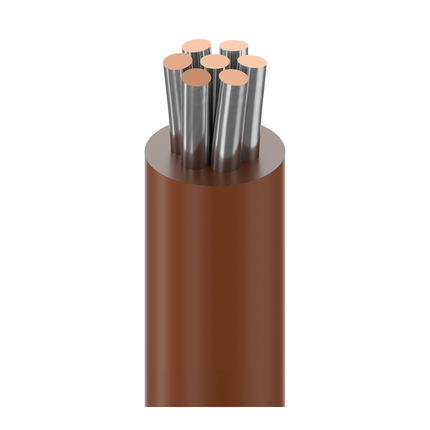

9921 - Lead Wire, #22 Str TC, PVC Ins, AWM 1007 AWM 1569

9921 – Lead Wire, #22 Str TC, PVC Ins, AWM 1007 AWM 1569

Call for Price

Compare
SKU: 9921 Categories: , , ,

Description

Product Overview

Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 22 AWG 7×30 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.062 in (1.6 mm)
Overall Cable Diameter (Nominal): 0.062 in (1.6 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
18.1 Ohm/1000ft Single conductor in free air @ 30ºC: 11 A
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -20°C To +105°C
Bend Radius
Stationary Min. Installation Min.
0.62 in (16 mm) 0.62 in (16 mm)
Max. Pull Tension: 9 lbs (4.1 kg)
Bulk Cable Weight: 4 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
AWM Compliance: AWM 1007, AWM 1569
CEC / C(UL) Compliance: TRSR-64
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.509 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9921 010100 Black Reel 100 ft 612825263210
9921 0101000 Black Reel 1,000 ft 612825263227 P
9921 0105000 Black Reel 5,000 ft 612825263234 C
9921 013100 Blue, Dark Reel 100 ft 612825263258
9921 0131000 Blue, Dark Reel 1,000 ft 612825263265 P
9921 0135000 Blue, Dark Reel 5,000 ft 612825263272 C
9921 006100 Blue, Light Reel 100 ft 612825263098
9921 0061000 Blue, Light Reel 1,000 ft 612825263104 P
9921 001100 Brown Reel 100 ft 612825262985
9921 0011000 Brown Reel 1,000 ft 612825262992 P
9921 008100 Gray Reel 100 ft 612825263135
9921 0081000 Gray Reel 1,000 ft 612825263142 P
9921 0085000 Gray Reel 5,000 ft 612825263159 C P
9921 005100 Green, Dark Reel 100 ft 612825263074
9921 0051000 Green, Dark Reel 1,000 ft 612825263081 P
9921 003100 Orange Reel 100 ft 612825263029
9921 0031000 Orange Reel 1,000 ft 612825263036 P
9921 002100 Red Reel 100 ft 612825263005
9921 0021000 Red Reel 1,000 ft 612825349860 P
9921 0025000 Red Reel 5,000 ft 612825349877 C P
9921 007100 Violet Reel 100 ft 612825263111
9921 0071000 Violet Reel 1,000 ft 612825263128 P
9921 009100 White Reel 100 ft 612825263173
9921 0091000 White Reel 1,000 ft 612825263180 P
9921 004100 Yellow Reel 100 ft 612825263043
9921 0041000 Yellow Reel 1,000 ft 612825263050 P
9921 0045000 Yellow Reel 5,000 ft 612825263067 C
