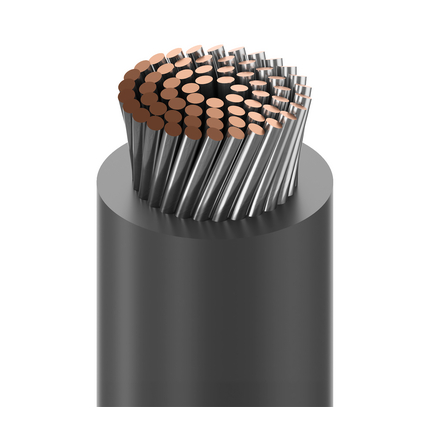

9910 - Lead Wire, #10 Str TC, PVC Ins, AWM 1015 AWM 1230

9910 – Lead Wire, #10 Str TC, PVC Ins, AWM 1015 AWM 1230

Call for Price

Compare
SKU: 9910 Categories: , , ,

Description

Product Overview

Suitable Applications: inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances, machine tool wire

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 10 AWG 65×28 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PVC – Polyvinyl Chloride 0.033 in (0.84 mm) 0.18 in (4.6 mm)
Overall Cable Diameter (Nominal): 0.18 in (4.6 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
6.5 Ohm/1000ft Single conductor in free air @ 30ºC: 6.5 A
Nom. Outer Shield DCR: 6 Ohm/km
Voltage
UL Voltage Rating
600 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C To +105°C
Bend Radius
Stationary Min. Installation Min.
1.8 in (46 mm) 1.8 in (46 mm)
Max. Pull Tension: 115 lbs (52.2 kg)
Bulk Cable Weight: 43 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
NEC / UL Compliance: Article 310, MTW or TW
AWM Compliance: AWM 1015, AWM 1230, CSA AWM I A/B
CEC / C(UL) Compliance: TEW
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.485 Revision Date: 04-19-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9910 010100 Black Reel 100 ft 612825260790
9910 010250 Black Reel 250 ft 612825260813
9910 0102000 Black Reel 2,000 ft 612825260806 C
9910 002100 Red Reel 100 ft 612825260714
9910 002250 Red Reel 250 ft 612825260738
9910 0022000 Red Reel 2,000 ft 612825260721 C
9910 009100 White Reel 100 ft 612825260769
9910 009250 White Reel 250 ft 612825260783
9910 0092000 White Reel 2,000 ft 612825260776 C
9910 004100 Yellow Reel 100 ft 612825260745
9910 004250 Yellow Reel 250 ft 612825260752
