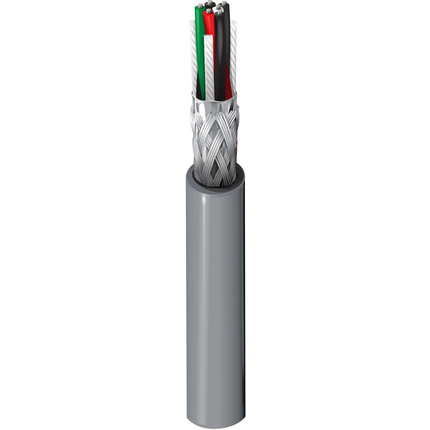

Product Overview
| Suitable Applications: |
RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, …); Low Voltage Digital Control (24v,
); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc. |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 24 |
7×32 |
TC – Tinned Copper |
3 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PE – Polyethylene |
1.73 mm |
0.05 mm |
| Number |
Color |
| Pair 1 |
White/Blue & Blue/White |
| Pair 2 |
White/Orange & Orange/White |
| Pair 3 |
White/Green & Green/White |
| Type |
Material |
Material Trade Name |
Coverage [%] |
Thickness of Foil |
Drainwire Material |
Drainwire AWG |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® (Z-Fold®) |
90% |
9 / 23 µm |
TC – Tinned Copper |
AWG24/7 |
| Braid |
Tinned Copper (TC) |
|
90% |
|
|
|
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
9.1 mm |
0.9 mm |
Construction and Dimensions
| Description |
Filler |
| 3 pairs and a filler twisted to cable core |
Polypropylene |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 78.7 Ohm/km |
7.7 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 42 pF/m |
75.5 pF/m |
| Frequency [MHz] |
Nominal Characteristic Impedance |
| 1 MHz |
120 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] |
Nom. Insertion Loss |
| 1 MHz |
1.97 dB/100m |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 520 ns/ft |
66% |
| Element |
Max. Recommended Current [A] |
| Conductor(s) |
1.54 Amps per Conductor |
Temperature Range
| Installation Temperature Range: |
-15°C To +80°C |
| Storage Temperature Range: |
-45°C To +80°C |
| Operating Temp Range (Flexible Install): |
-15°C To +80°C |
| Operating Temp Range (Fixed Install): |
-45°C To +80°C |
Mechanical Characteristics
| Oil Resistance: |
IEC 60811-404 |
| Min. Bend Radius During Installation: |
91 mm |
Standards
| CPR Euroclass: |
Dca-s2,d2,a1 |
| CENELEC Compliance: |
EN 50290-2-20 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Dca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2, IEC 60332-3-24 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 9843NH.00305 |
Chrome |
Reel |
305 m |
8719605023360 |
| 9843NH.00500 |
Chrome |
Reel |
500 m |
8719605023377 |
| 9843NH.001000 |
Chrome |
Reel |
1,000 m |
8719605023353 |
History
| Update and Revision: |
Revision Number: 0.218 Revision Date: 12-22-2023 |
