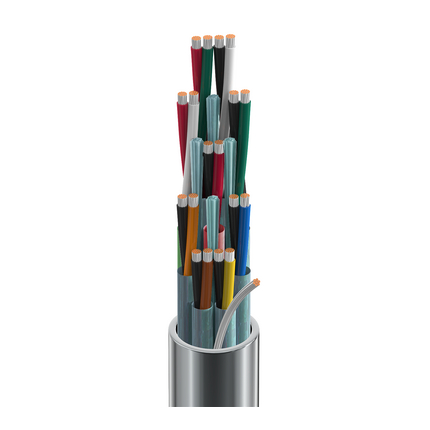

9775 - Audio, Control & Instrument, #18-9pr, PO, Indiv. Foil, PVC Jkt, CM

9775 – Audio, Control & Instrument, #18-9pr, PO, Indiv. Foil, PVC Jkt, CM

Call for Price

Compare
SKU: 9775 Categories: , , ,

Description

Product Overview

Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, …); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 9 18 AWG 19×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.019 in (0.48 mm) 0.082 in (2.1 mm) Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green
Inner Shield
Element Shield Type Material Coverage Drainwire Type Notes
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC each pair
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Polyester Tape PVC – Polyvinyl Chloride 0.052 in (1.3 mm) 0.655 in (16.6 mm)
Overall Cable Diameter (Nominal): 0.655 in (16.6 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 7.2 Ohm/1000ft 8.3 Ohm/1000ft (27 Ohm/km) 30 pF/ft (98 pF/m) 55 pF/ft (180 pF/m) 50 Ohm 66% 2.7 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 30 V (AWM 2929)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
6.6 in (170 mm) 6.6 in (170 mm)
Max. Pull Tension: 558 lbs (253 kg)
Bulk Cable Weight: 244 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2919
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.498 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9775 060100 Chrome Reel 100 ft 612825258544
9775 060500 Chrome Reel 500 ft 612825258568 C
9775 0601000 Chrome Reel 1,000 ft 612825258551 C
9775 0605000 Chrome Reel 5,000 ft 612825258575
