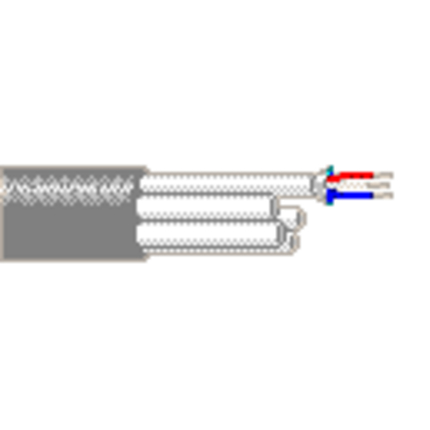

9772 - Audio & Instrumentation, 12 Triads 22 AWG (36C) TC, Individually Jacketed

9772 – Audio & Instrumentation, 12 Triads 22 AWG (36C) TC, Individually Jacketed

Call for Price

Compare
SKU: 9772 Categories: , , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Triad(s) 12 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Triad(s) PP – Polypropylene 0.0085 in (0.22 mm) 0.046 in mm Black, Red, Green
Black, Red, Green, Yellow, Blue, Brown, Orange, Grey, Violet, Black/Black, Red/Black, Green/Black Colors Indicated here is for Inner Jacket
Inner Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Outer Shield
Material
No Shield
Inner Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.02 in (0.51 mm) 0.150 in (3.81 mm)
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
Paper Tape PVC – Polyvinyl Chloride 0.06 in (1.5 mm) 0.725 in Yes
Overall Cable Diameter (Nominal): 0.725 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
15 Ohm/1000ft 12.1 Ohm/1000ft (39.7 Ohm/km) 34 pF/ft (110 pF/m) 67 pF/ft (220 pF/m) 2.3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
2.32 in (58.9 mm) 2.32 in
Max. Pull Tension: 327.6 lbs (148.6 kg)
Bulk Cable Weight: 257lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: VW-1, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Each triad shielded with 100% Beldfoil« shield and drain wire, encased in a .020″” white PVC jacket with color coded stripes.

History

Update and Revision: Revision Number: 0.368 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9772 060500 Chrome Reel 500 ft 612825358138 C
