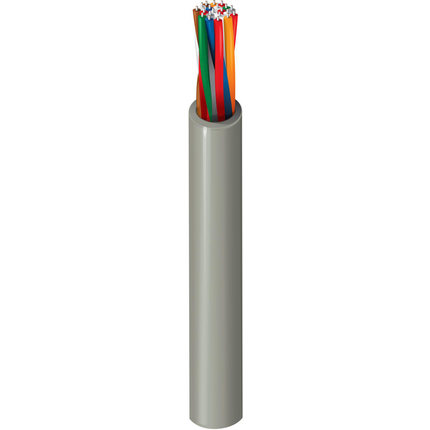

9570 - Audio, Control & Instrument, #24-10pr, PVC, PVC Jkt, CMG

9570 – Audio, Control & Instrument, #24-10pr, PVC, PVC Jkt, CMG

Call for Price

Compare
SKU: 9570 Categories: , , ,

Description

Product Overview

Suitable Applications: telephone cables; low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); voice communications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 10 24 Solid TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.01 in (0.25 mm) 0.041 in (1.0 mm) White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown, Red & Gray
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.035 in (0.89 mm) 0.31 in (7.9 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
32.8 Ohm/1000ft 22 pF/ft (72 pF/m) 1 Amp per Conductor at 20ºC
Voltage
UL Voltage Rating
300 V (CMG), 150 V (AWM 2576)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
3.1 in (79 mm) 3.1 in (79 mm)
Max. Pull Tension: 102 lbs (46.3 kg)
Bulk Cable Weight: 56 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire: UL1685 FT4 Loading, FT4
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2576
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.425 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
9570 060500 Chrome Reel 500 ft 612825256076
9570 0601000 Chrome Reel 1,000 ft 612825256069 C
