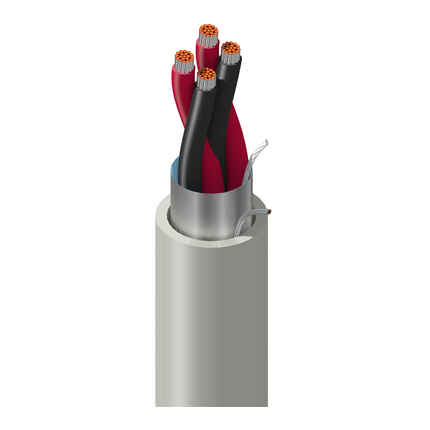

9552 - High Perform Instr, 2 Pr #18 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

9552 – High Perform Instr, 2 Pr #18 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9552 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 2 18 AWG 19×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PVC – Polyvinyl Chloride 0.019 in (0.48 mm) 0.082 in (2.1 mm) ICEA chart E2
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 18 AWG (7×26) TC
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter Ripcord
PP – Polypropylene Tape PVC – Polyvinyl Chloride 0.053 in (1.3 mm) 0.420 in (10.7 mm) Yes
Overall Cable Diameter (Nominal): 0.420 in (10.7 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Shield Max. Current
Pair(s) 7.2 Ohm/1000ft 35 pF/ft (110 pF/m) 54 pF/ft (180 pF/m) 4 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (PLTC, CMG)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min. Installation Min.
4.2 in (110 mm) 4.2 in (110 mm)
Max. Pull Tension: 121 lbs (54.9 kg)
Bulk Cable Weight: 73 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
CPR Compliance: CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.603 Revision Date: 01-04-2024

Part Numbers

Variants
Item # Color UPC Footnote
9552 0601000 Chrome 612825255772 C
9552 060500 Chrome 612825255789 C
9552 0605000 Chrome 612825255796 Z
