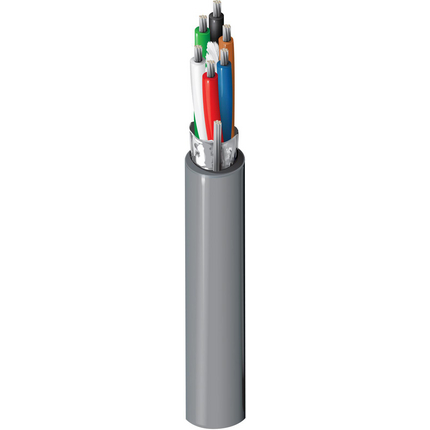

Product Overview
| Suitable Applications: |
Instrumentation and computer cable; For EIA RS-232 data transmission applications |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Conductors |
| 24 |
7×32 |
TC – Tinned Copper |
6 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PE – Polyethylene (Foam) |
1.12 mm |
0.05 mm |
| Number |
Color |
| Wire 1 |
Black |
| Wire 2 |
White |
| Wire 3 |
Red |
| Wire 4 |
Green |
| Wire 5 |
Brown |
| Wire 6 |
Blue |
| Type |
Material |
Material Trade Name |
Thickness of Foil |
Drainwire Material |
Drainwire AWG |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
9 / 12 µm |
TC – Tinned Copper |
AWG24/7 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
6.6 mm |
1.3 mm |
Construction and Dimensions
| Description |
Filler |
| 1 center filler and 6 wires twisted to cable core |
Cotton (White) |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 82 Ohm/km |
59.1 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 108.3 pF/m |
213.3 pF/m |
| Frequency [MHz] |
Nominal Characteristic Impedance |
| N/A |
75 Ohm |
| Element |
Max. Recommended Current [A] |
| Conductor(s) |
1.75 Amps per Conductor |
Temperature Range
| Installation Temperature Range: |
-15°C To +70°C |
| Storage Temperature Range: |
-45°C To +70°C |
| Operating Temp Range (Flexible Install): |
-15°C To +70°C |
| Operating Temp Range (Fixed Install): |
-45°C To +80°C |
Mechanical Characteristics
| Oil Resistance: |
IEC 60811-404 |
| Min. Bend Radius During Installation: |
64 mm |
Standards
| CPR Euroclass: |
Cca-s1,d1,a1 |
| CENELEC Compliance: |
EN 50290-2-20 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Cca |
Suitability
| Suitability – Indoor: |
Yes |
| Suitability – Non-Halogenated: |
Yes |
| Suitability – Sunlight Resistance: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
History
| Update and Revision: |
Revision Number: 0.35 Revision Date: 02-15-2024 |
