| Suitable Applications: | RS-232 Applications; Computer Communications; Low Voltage Analog Signals (4-20ma, 0-10v, …); Low Voltage Digital Control (24v, ); Line Level Audio; Panel Wiring |

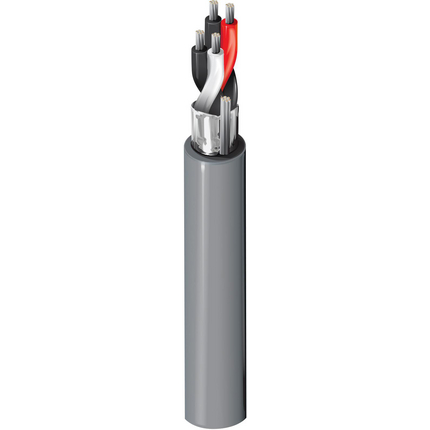

| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 2 | 24 AWG | 7×32 | TC – Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | SR-PVC – Polyvinyl Chloride (Semi-Rigid) | 0.011 in (0.28 mm) | 0.044 in (1.1 mm) | Black & Red, Black & White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7×32) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.032 in (0.81 mm) | 0.222 in (5.64 mm) |
| Overall Cable Diameter (Nominal): | 0.222 in (5.64 mm) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 30 pF/ft (98 pF/m) | 50 pF/ft (160 pF/m) | 60% | 2.1 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V (CMG), 300 V (UL AWM 2464) |
| UL Temperature | Operating |
|---|---|
| 80°C | -30°C to +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 2.2 in (56 mm) | 2.2 in (56 mm) |
| Max. Pull Tension: | 27.5 lbs (12.5 kg) |
| Bulk Cable Weight: | 26 lbs/1000ft |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, FT4 |
| CPR Compliance: | CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance: | Article 800, CMG |
| AWM Compliance: | AWM 2464, AWM I/II A |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | P-MSHA-SC-7K-182037 |
| Plenum Number: | 82502 |
| Notes: | Pennsylvania Department of Environmental Resources and United States Mine Safety and Health Administration certification. Request quotations on RG/U cables not listed. |
| Update and Revision: | Revision Number: 0.545 Revision Date: 12-22-2023 |
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 9502.0030 | Chrome | Reel | 30 m | 8719605020840 | |
| 9502 060100 | Chrome | Reel | 100 ft | 612825254133 | |
| 9502.00U152 | Chrome | UnReel | 152 m | 8719605020857 | |
| 9502.01152 | Chrome | Reel | 152 m | 8719605020888 | |
| 9502.00U305 | Chrome | UnReel | 305 m | 8719605020864 | |
| 9502.01305 | Chrome | Reel | 305 m | 8719605020901 | |
| 9502.01305 | Chrome | Reel | 305 m | 8719605020901 | |
| 9502 060500 | Chrome | Reel | 500 ft | 612825254164 | C |
| 9502 060U500 | Chrome | UnReel | 500 ft | 612825254126 | |
| 9502 0601000 | Chrome | Reel | 1,000 ft | 612825254140 | C |
| 9502 060U1000 | Chrome | UnReel | 1,000 ft | 612825254119 | |
| 9502.011500 | Chrome | Reel | 1,500 m | 8719605020871 | |
| 9502.013048 | Chrome | Reel | 3,048 m | 8719605020895 | |
| 9502 0605000 | Chrome | Reel | 5,000 ft | 612825254171 | C Z |
| 9502 06010000 | Chrome | Reel | 10,000 ft | 612825254157 | C Y |
