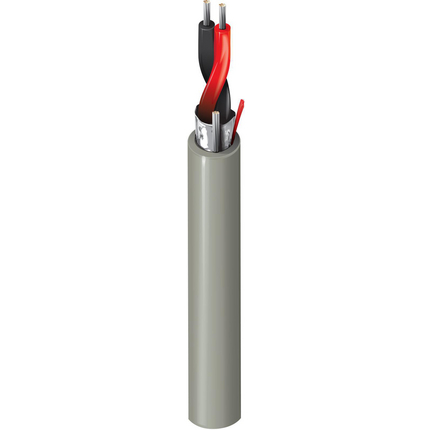

Product Overview
| Suitable Applications: |
Instrumentation and computer cable; For EIA RS-232 data transmission applications |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
No. of Pairs |
| 24 |
7×32 |
TC – Tinned Copper |
1 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
| PE – Polyethylene |
1.12 mm |
0.05 mm |
| Number |
Color |
| Pair 1 |
Black & Red |
| Type |
Material |
Material Trade Name |
Thickness of Foil |
Drainwire Material |
Drainwire AWG |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
9 / 12 µm |
TC – Tinned Copper |
AWG24/7 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
4.15 mm |
0.9 mm |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 78.7 Ohm/km |
59.1 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 131.2 pF/m |
242.8 pF/m |
| Frequency [MHz] |
Nominal Characteristic Impedance |
| N/A |
75 Ohm |
| Element |
Max. Recommended Current [A] |
| Conductor(s) |
2.2 Amps per Conductor |
Temperature Range
| Installation Temperature Range: |
-15°C To +80°C |
| Storage Temperature Range: |
-45°C To +80°C |
| Operating Temp Range (Flexible Install): |
-15°C To +80°C |
| Operating Temp Range (Fixed Install): |
-45°C To +80°C |
Mechanical Characteristics
| Oil Resistance: |
IEC 60811-404 |
| Min. Bend Radius During Installation: |
41.5 mm |
Standards
| CPR Euroclass: |
Dca-s1,d1,a1 |
| CENELEC Compliance: |
EN 50290-2-20 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Dca |
Suitability
| Suitability – Sunlight Resistance: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2, IEC 60332-3-24 |
| IEC 60754-1 – Halogen Amount: |
Zero |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
EAN |
| 9501NH.00152 |
Chrome |
Reel |
152 m |
8719605020819 |
| 9501NH.00305 |
Chrome |
Reel |
305 m |
8719605020826 |
| 9501NH.00500 |
Chrome |
Reel |
500 m |
8719605020833 |
| 9501NH.001000 |
Chrome |
Reel |
1,000 m |
8719605020802 |
History
| Update and Revision: |
Revision Number: 0.217 Revision Date: 02-15-2024 |
