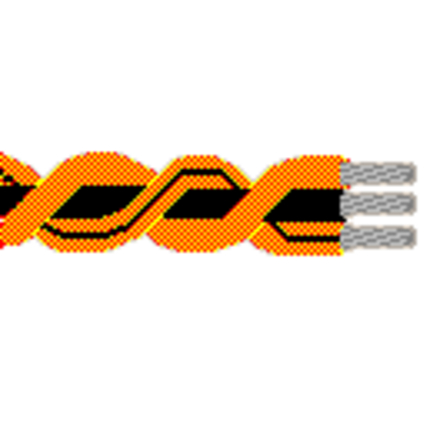

Product Overview
| Suitable Applications: |
low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v,
); line level audio; panel wiring |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Conductors |
| 16 |
19×29 |
TC – Tinned Copper |
0.059 in |
3 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.113 in |
0.027 in |
| Number |
Color |
| 1 |
Orange |
| 2 |
Black |
| 3 |
Orange w/Black Stripe |
| Nominal Diameter |
| 0.243 in |
Electrical Characteristics
| Nominal Conductor DCR |
| 4.8 Ohm/1000ft |
| Max. Recommended Current [A] |
| 7.1 Amps per Conductor at 25ºC |
| UL Voltage Rating |
| 300 V RMS (UL AWM Style 1007) |
Temperature Range
| UL Temp Rating: |
80°C (UL AWM Style 1007) |
| Operating Temperature Range: |
-40°C To +80°C |
Mechanical Characteristics
| Bulk Cable Weight: |
38 lbs/1000ft |
| Max. Pull Tension: |
97 lbs |
| Min. Bend Radius/Minor Axis: |
2.5 in |
Standards
| UL AWM Style Compliance: |
AWM 1007 (300 V 80°C) |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL voltage rating: |
300 V RMS (UL AWM Style 1007) |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 9498 0001000 |
None |
Reel |
1,000 ft |
612825239970 |
History
| Update and Revision: |
Revision Number: 0.331 Revision Date: 12-20-2022 |
