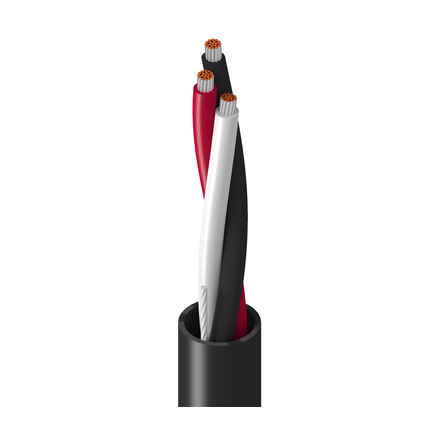

9494 - High Perform Instr, 1 Tri #16 Str TC, PVC Ins E1, PVC Jkt, PLTC

9494 – High Perform Instr, 1 Tri #16 Str TC, PVC Ins E1, PVC Jkt, PLTC

Call for Price

Compare
SKU: 9494 Categories: , , , ,

Description

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, RTD, 4-20mA, 0-10V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Triad(s) 1 16 AWG 19×29 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Triad(s) PVC – Polyvinyl Chloride 0.017 in (0.43 mm) 0.097 in (2.5 mm) ICEA Chart E1
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.037 in (0.94 mm) 0.293 in (7.44 mm) Yes
Overall Cable Diameter (Nominal): 0.293 in (7.44 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Triad(s) 4.5 Ohm/1000ft 29 pF/ft (95 pF/m) 6.2 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (PLTC, CMG)

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min. Installation Min.
2.8 in (71 mm) 2.8 in (71 mm)
Max. Pull Tension: 120 lbs (54 kg)
Bulk Cable Weight: 51 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 UL Loading, FT4, T-29-520, IEEE 1202
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC, PLTC
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Alternate color coding available upon request.

History

Update and Revision: Revision Number: 0.601 Revision Date: 01-04-2024

Part Numbers

Variants
Item # Color UPC Footnote
9494 0602500 Chrome 612825253983 Z
9494 060U1000 Chrome 612825253969
9494 060U500 Chrome 612825253976
