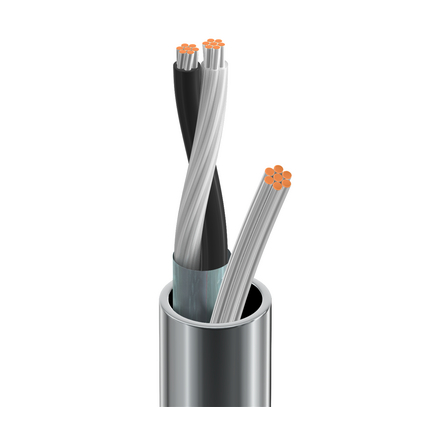

9461 - Electronic, 1 Pr #22 Str TC, PE Ins, OS, PVC Jkt, CM

9461 – Electronic, 1 Pr #22 Str TC, PE Ins, OS, PVC Jkt, CM

Call for Price

Compare
SKU: 9461 Categories: , , ,

Description

Product Overview

Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE – Polyethylene 0.017 in (0.43 mm) 0.062 in (1.6 mm) Black & Clear
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC Foil-In
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.026 in (0.66 mm) 0.180 in (4.57 mm)
Overall Cable Diameter (Nominal): 0.180 in (4.57 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Pair(s) 16 Ohm/1000ft 24 pF/ft (79 pF/m) 47 pF/ft (150 pF/m) 64 Ohm 3 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 300 V (UL AWM 2092)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
1.8 in (46 mm) 1.8 in (46 mm)
Max. Pull Tension: 27 lbs (12 kg)
Bulk Cable Weight: 20 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CM
AWM Compliance: AWM 2092
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Shield is bonded to jacket so both can be removed on automatic stripping equipment.

History

Update and Revision: Revision Number: 0.533 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color UPC
9461 0605000 Chrome 612825253419
9461 060U1000 Chrome 612825253396
9461 060U500 Chrome 612825253402
