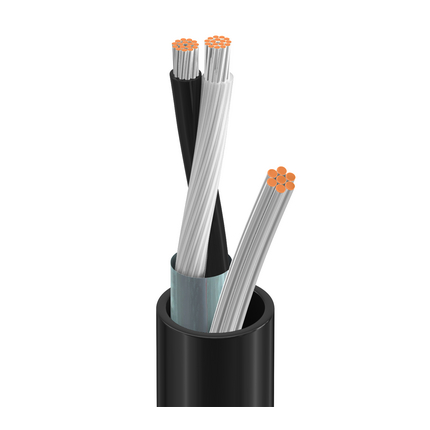

9460 - Electronic, 1 Pr #18 Str TC, PE Ins, OS, PVC Jkt, CM

9460 – Electronic, 1 Pr #18 Str TC, PE Ins, OS, PVC Jkt, CM

Call for Price

Compare
SKU: 9460 Categories: , , ,

Description

Product Overview

Suitable Applications: for use with automatic stripping equipments; low voltage analog signals (4-20ma, 0-10v, …); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 18 AWG 16×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PE – Polyethylene 0.018 in (0.46 mm) 0.082 in (2.1 mm) Black & Clear
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC Foil-In
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.030 in (0.76 mm) 0.230 in (5.84 mm)
Overall Cable Diameter (Nominal): 0.230 in (5.84 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
Pair(s) 6.5 Ohm/1000ft 29.8 pF/ft (97.8 pF/m) 44 pF/ft (140 pF/m) 57 Ohm 5.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
2.3 in (58 mm) 2.3 in (58 mm)
Max. Pull Tension: 62 lbs (28 kg)
Bulk Cable Weight: 34 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL 1685 UL loading , IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CM
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: The jacket and shield are bonded so both can be removed on automatic stripping equipment. Drain wire is on the inside of foil shield.

History

Update and Revision: Revision Number: 0.533 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color UPC Footnote
9460 0105000 Black 612825253334 C Z
9460 0605000 Chrome 612825253365 C Z
9460 060U1000 Chrome 612825253341
9460 060U500 Chrome 612825253358
