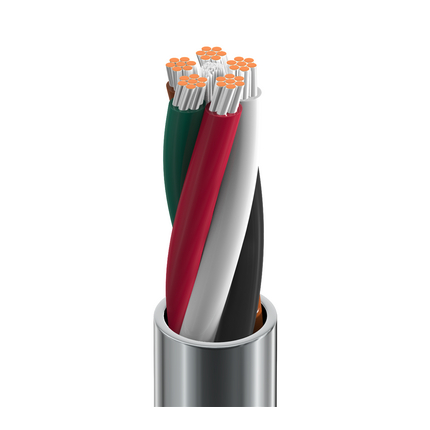

9445 - Electronic, 5 C #20 Str TC, PVC Ins, PVC Jkt, CMG

9445 – Electronic, 5 C #20 Str TC, PVC Ins, PVC Jkt, CMG

Call for Price

Compare
SKU: 9445 Categories: , , ,

Description

Product Overview

Suitable Applications: low voltage analog signals (4-20ma, 0-10v, …); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 5 20 AWG 7×28 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.015 in (0.38 mm) 0.065 in (1.7 mm) Black, White, Red, Green, Brown
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.032 in (0.81 mm) 0.239 in (6.07 mm)
Overall Cable Diameter (Nominal): 0.239 in (6.07 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
Conductor(s) 10.7 Ohm/1000ft 27 pF/ft (89 pF/m) 3.2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.4 in (61 mm) 2.4 in (61 mm)
Max. Pull Tension: 63 lbs (29 kg)
Bulk Cable Weight: 36 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire: UL 1685 FT4 Loading, FT4, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 800, CMG
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.506 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color UPC Footnote
9445 060100 Chrome 612825252481
9445 0601000 Chrome 612825252498 C
9445 060500 Chrome 612825252504 C
9445 0605000 Chrome 612825252511
9445 060U1000 Chrome 612825252467
